1991-1997 Cummins PowerFlo Lift Pump (FPE-PF-CUMM-9197)

Description

Fits

Year	Make	Model	Engine
1991-1997	Dodge	Ram	5.9L Cummins 12V



A complete fuel upgrade for your Cummins by Fleece; this PowerFlo Lift Pump is the latest OEM replacement pump that requires no modifications & installs in less than half the time of other pumps.

Part Number: FPE-PF-CUMM-9197

Features

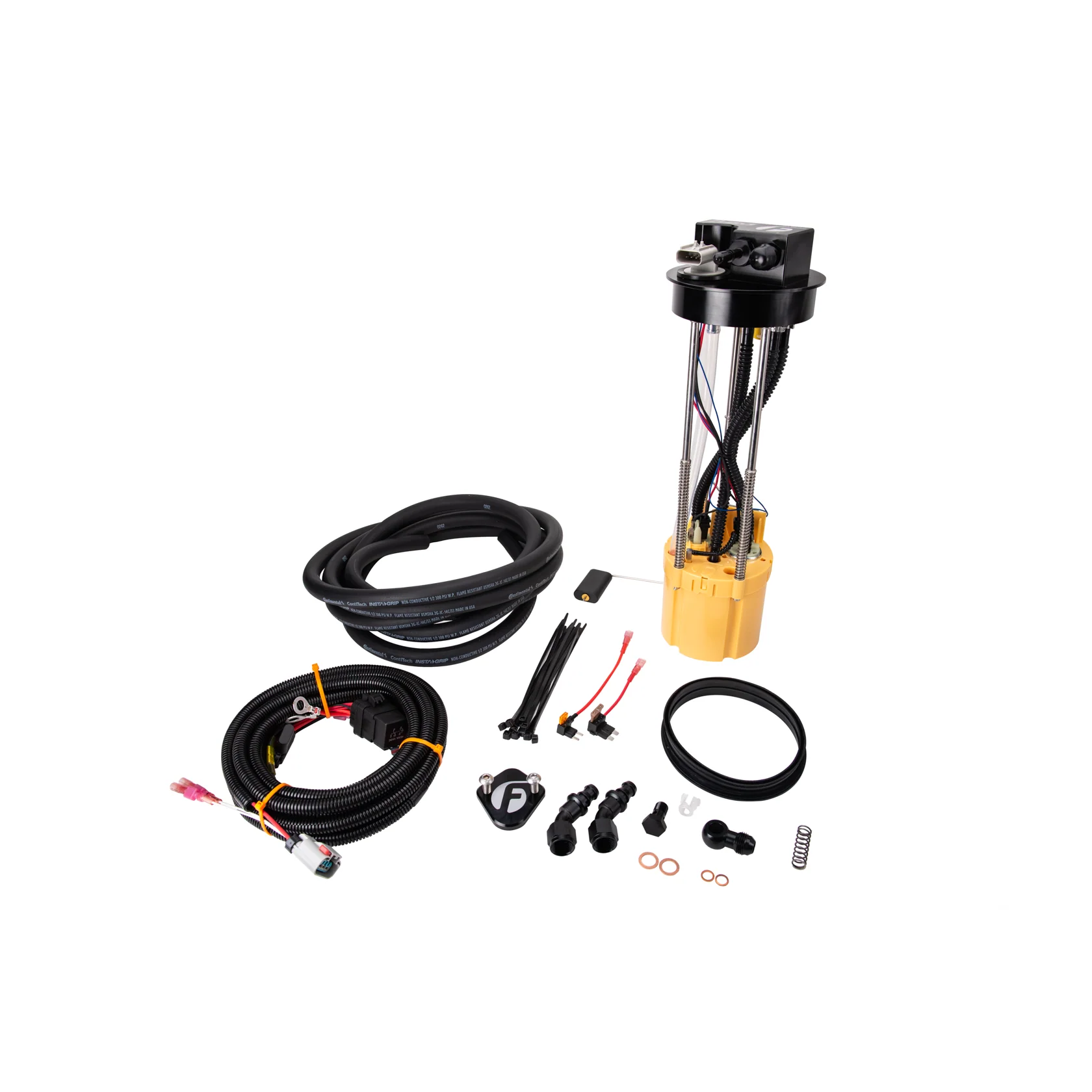

• PowerFlo Lift Pump with integral fuel sender
• 16' of push lock hose and all necessary AN fittings
• Mechanical fuel pump block off plate (FPE-CUMM-FBOP)
• Wiring harness and fuse taps
• Flange tank seal
• Capable of supporting up to 800HP
• Direct Fit; No cutting or drilling
• 2 OEM quality gerotor pumps, increasing flow capacity & reliability
• Active fill bucket eliminates the need for tank sumps, draw straws, and the ¼ tank issues

Notes

• Cross-reference chart:


Model Year	Replaces MOPAR P/N	Previously Superseded P/N's	Fuel Tank Size
1989 / 1990	52004637	04495052	22, 30, 34, and 36 Gallon
1991	52018309	52004838, 52004937	30 Gallon
1992	52018309	52004838, 52004937	30 Gallon
1993	52018309	52004838, 52004937	30 Gallon
1994	4864735	R4864735, 4864735	35 Gallon
1995	4864209	04798293, 52102024, 52127802, R4864209, 4864209	35 Gallon
1996	4798671	04798293, 52102024, 52127802, R4864209, 4864209	35 Gallon
1997	4798671	04798293, 52102024, 52127802, R4864209, 4864209	35 Gallon
1998	4897668AD	0489766AD, 489766AE	26, 34, 35 Gallon



Installation

Click Here to view installation instructions

Notes

IMPORTANT - Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit.  Many trucks have been retrofitted over time to gasoline model tanks and the SureFlo will not fit into a retrofitted tank configuration.  For Model Year 1998 trucks equipped with a 12 valve engine - your vehicle will require our 1998 12-valve specific kit (Part Number FPE-PF-CUMM-98-12V) . These trucks would have been originally equipped with sending unit part number 52102079AB.

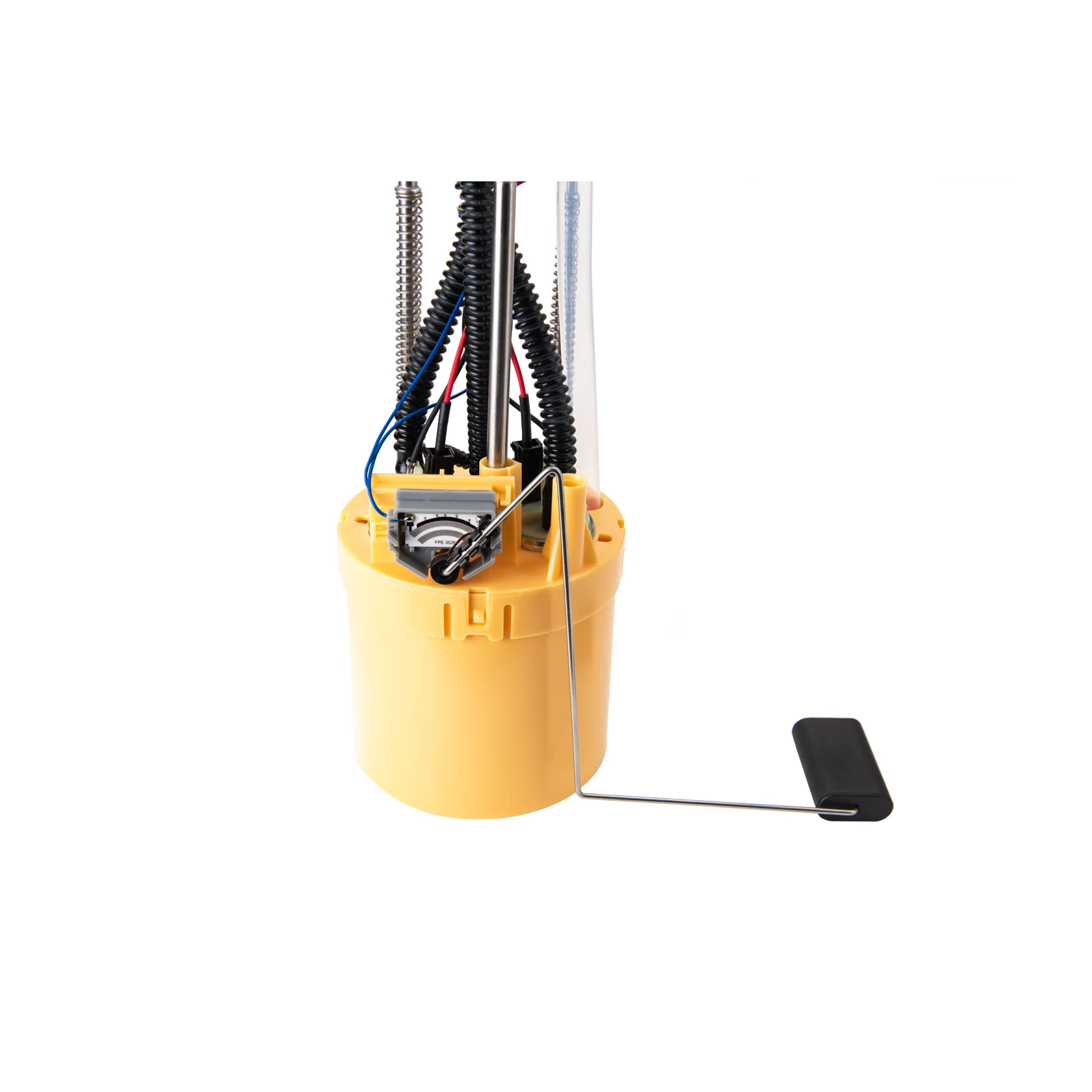

• You can also verify your proper part number by the resistance range of the level sender on your existing unit.
• If your stock sending unit ranges between 6 – 113 ohms – use FPE-PF-CUMM-9198
• If your stock sending unit ranges between 20 - 220 ohms – use FPE-PF-CUMM-98-12V
• LOW FUEL LEVEL LAMP - This sending unit does NOT include provisions to illuminate the Low Fuel level dash lamp.

• USE ON 1989/1990 MODEL YEAR TRUCKS: This sending unit will work on MY 1989 and 1990 trucks that have a tank swap to a 1991-1997 newer tank.
