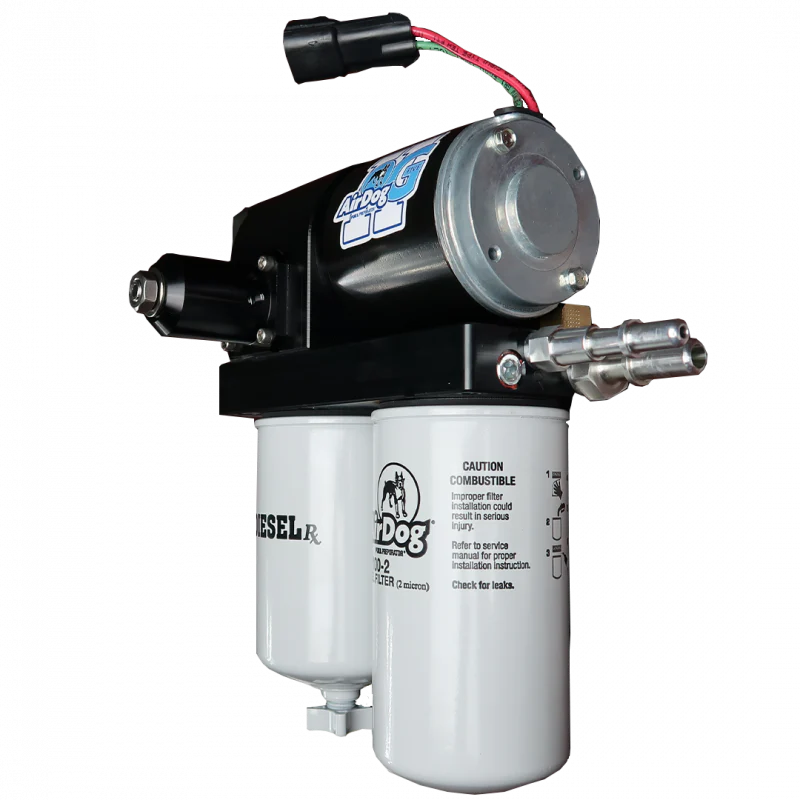

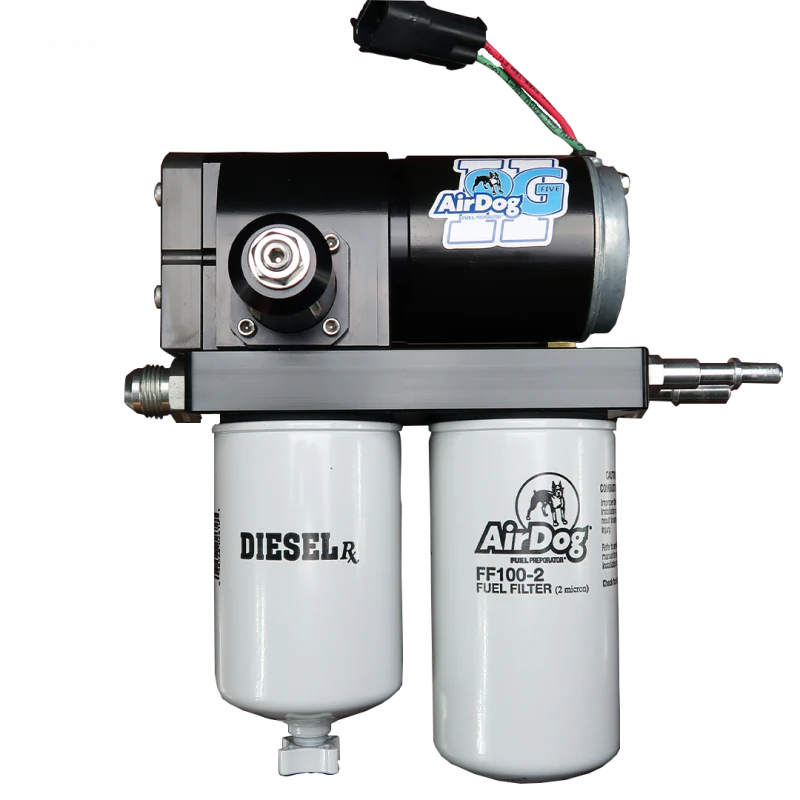

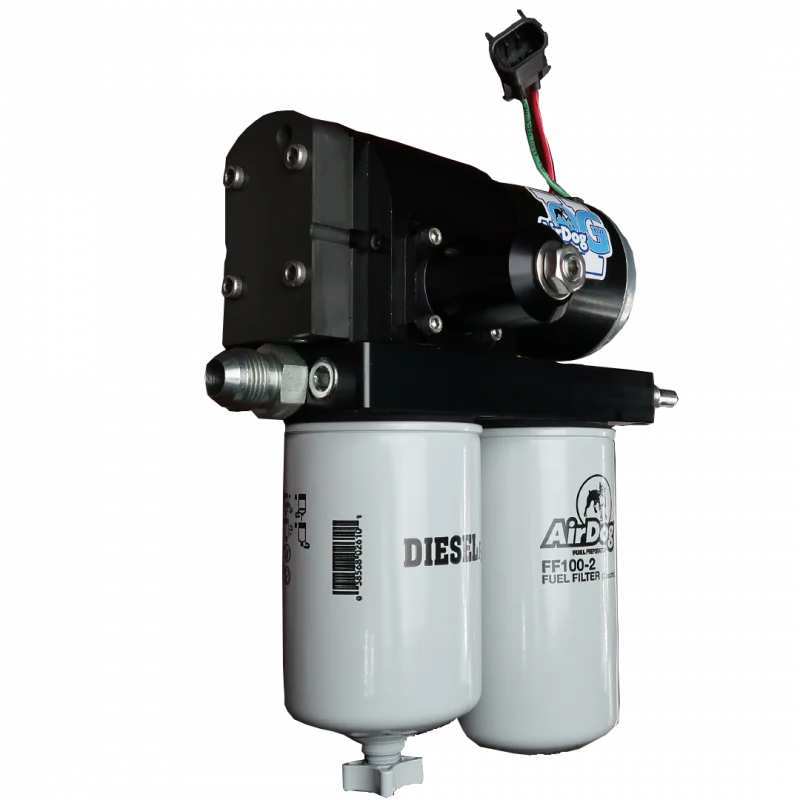

1994-1998 Cummins AirDog II-5G 220GPH Lift Pump (A7SABD527)

Description

Fits

Year	Make	Engine
1994-1998	Dodge	12V 5.9L Cummins

This is the AirDog II-5G DF-220 fuel system for the 1994-1998 Dodge Ram P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A draw straw is installed in the fuel tank to provide fuel to the pump.  The pressure side connects directly into the side of the P-Pump, bypassing the factory fuel filter housing and block-mounted pump. The injection pump return is tied into the engine return to eliminate the need for the factory filter head. The AirDog Air/Vapor return is sent back to the tank through the filler neck return tee.  This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks. Check out the installation manual for a list of parts included in this kit.

Part Number: A7SABC514

Features

• 220GPH Lift Pump
• Mounts to the frame rail
• Draw straw installed in the fuel tank
• Ideal for heavily modified trucks

Installation

• Click Here

Warranty

• Click Here
