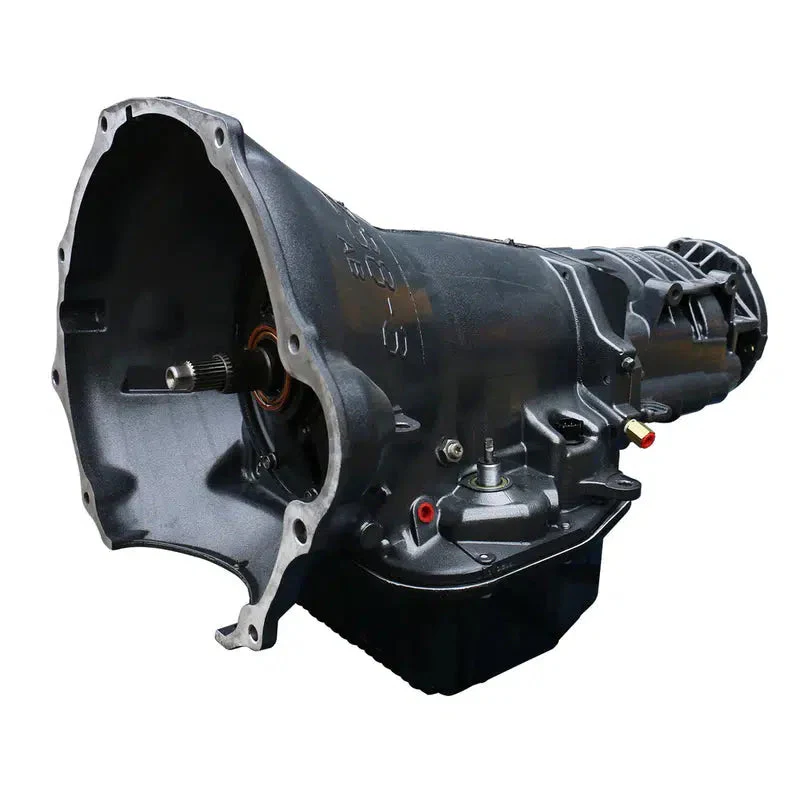

1996-1998 Cummins 47RE Towmaster Transmission (4WD) (1064164F)

Description

Fits

Year	Make	Model	Engine
1996-1998	Dodge Ram	F-150 4WD	12V 5.9L Cummins

Upgrade your drivetrain with a BD transmission for maximum performance and increased durability! This transmission includes BD's heavy duty pan and includes an auxiliary filter kit for added protection.

Part Number: 1064164F

Features

• Increase the durability of your drivetrain
• Stock thrust bushings replaced with roller Torrington bearings
• Every transmission is tested on a dyno
• Upgraded Valvebody

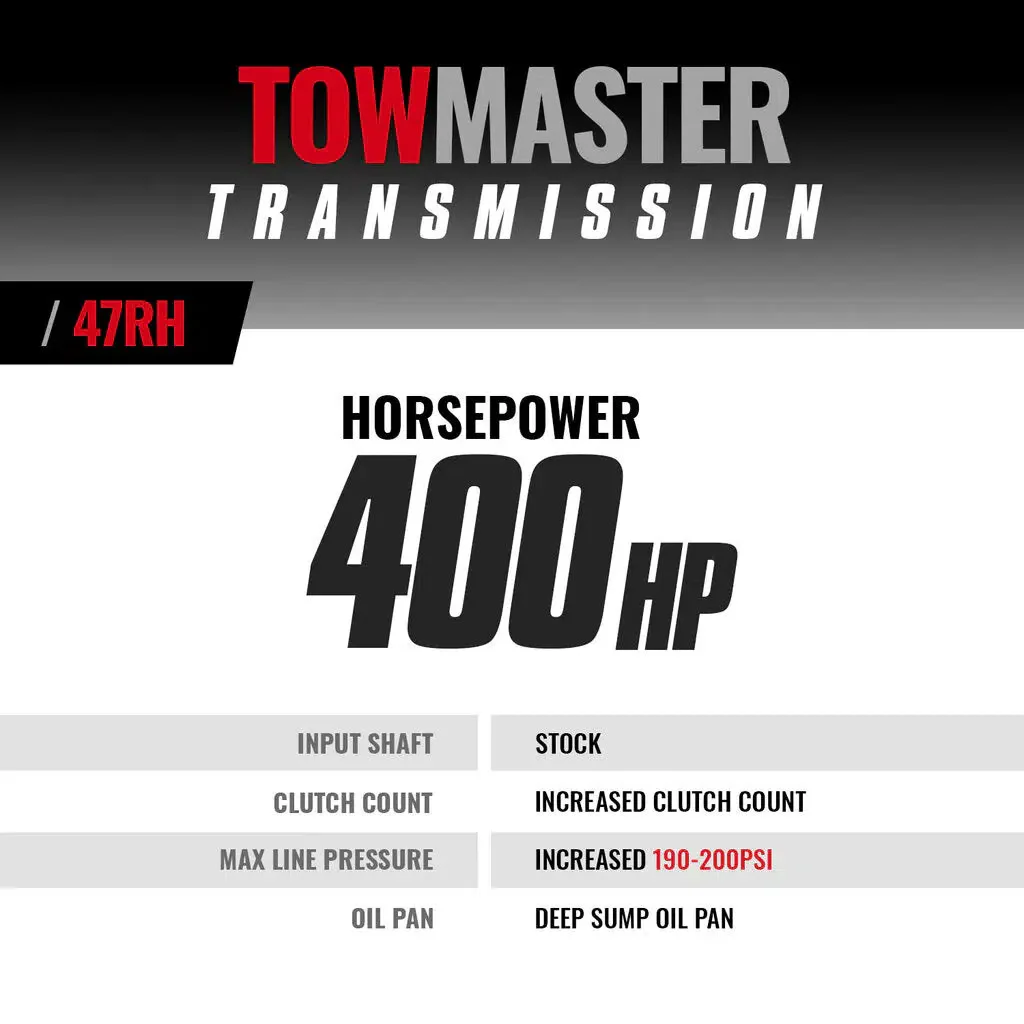

• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet barrel strut
• Billet band lever
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 6
• High temp/energy Raybestos band
• Upgraded governor pressure transducer (47RE/48RE)
• Upgraded governor solenoid - Twice the burst pressure than stock
• Upgraded 48RE sunshell
• Cooler line case saver in every transmission

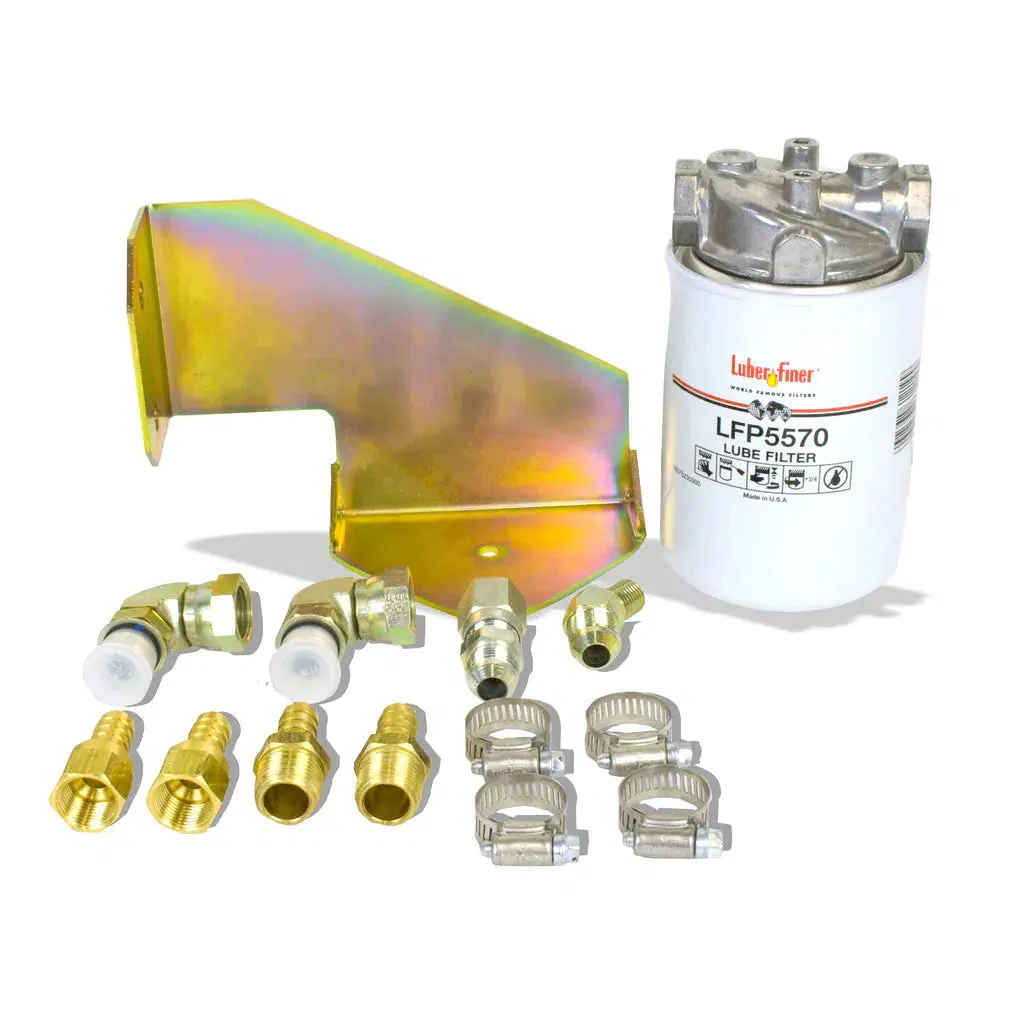

• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty transmission pan
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Pan adds 2qt extra oil capacity
• Not warranted for Race or Sled Pull use

Installation

• 9-Hours
• Auxiliary Transmission Filter Kit Click Here
• Install Click Here

Warranty

Parts Only - No Race or Sled Pull use covered

• 36-Months
• 150,000 miles
• Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
