2001-2010 Duramax 3" Adventure Series Lift (ZONC31N)

Description

Fits

Year	Make	Model	Engine
2001-2010	GM	2500/3500 HD	LB7, LBZ 6.6L Duramax

Note: will not fit Dually

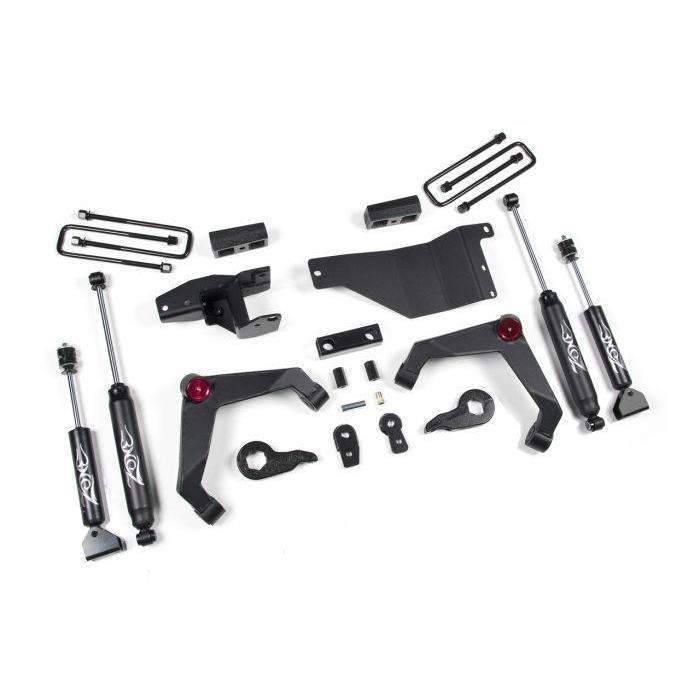

This ZONC31N is a new addition to the Adventure Series lineup of lift systems and is built around the Zone Offroad heavy-duty replacement upper control arms already available for the 01-10 HD trucks.  The arms are made from 3/16” steel that is precision laser cut, formed, and fully welded.  Preinstalled Raybestos brand ball joints and rubber bushings provide easy installation and long service life.

The ball joint is repositioned to compensate for the added lift and maintain a neutral position at ride height.  To complement the improved upper ball joint angles, the kit address the other area often ignored at this lift height – the CV shafts.

Features

• Differential drop system that relocates the differential down 2” for near stock angles at the 3” lift height
• Drop spacer on the passenger’s side
• (2) drop brackets for the front driver’s mount
• Integrated “half cross member” for the driver’s rear mount
• New different skid plate
•  2” rear lift by block & u-bolts
•  Front and rear shocks are included and can be upgraded to Nitro versions.

RPO Number: FT2, FT3, FT4, FT5, FT6 or FT7



Notes

• Please note that a Frame Bracket Mount modification and a Torsion Bar unloading/loading tool are required when installing this kit.
• RPO codes are located in the glove box – match one of the following in order to determine kit

• RPO code must be verified to order the correct kit – this covers the factory torsion key differences.

Fitment

• 33x12.50 on 17x9 w/ 5" Backspacing. Minor Trimming may be required depending on the model of truck.
