2003-2013 Cummins Fabricated Axle Truss (CS-AAMTRUSS-03)

Description

Fits

Year	Make	Model
2003 - 2012	Dodge	Ram 2500
2003 - 2013	Dodge	Ram 3500

Note: This component MUST be welded on

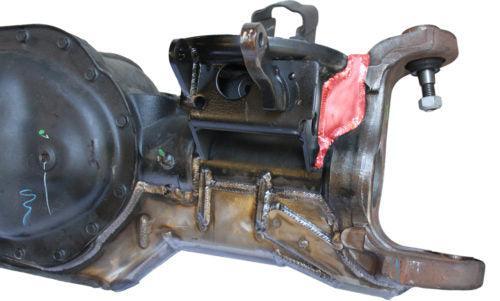

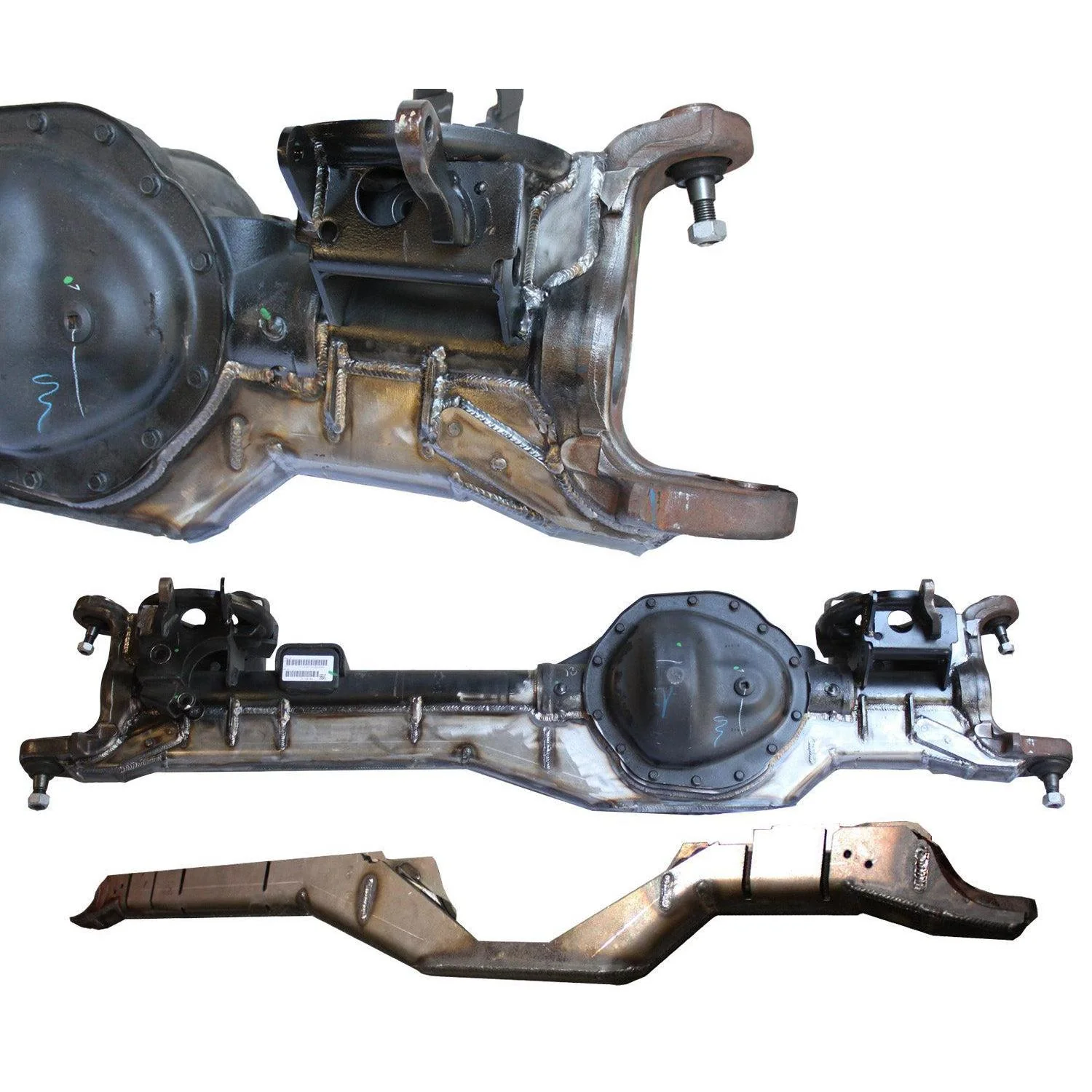

Born from the playbook of the U.S. Corps of Army Engineers, stacked with precision laser-cut 1/4″ cold-rolled plate and gussets upon gussets, an interwoven series of triangles snakes its way across the axle, creating an unbreakable backbone of strength. This fabricated truss is a crucial component for any avid off-roader. The epitome of maximum strength and protection for your axle, no matter the trail or speed you're traveling.

Part Number: CS-AAMTRUSS-03

Features

• Fully weld-on and should be installed only by experienced fabricators
• 1/4″ Cold Rolled Steel Construction with full-length internal X-Bracing
• Includes Upper C Gussets & Lower C Doubler Plates

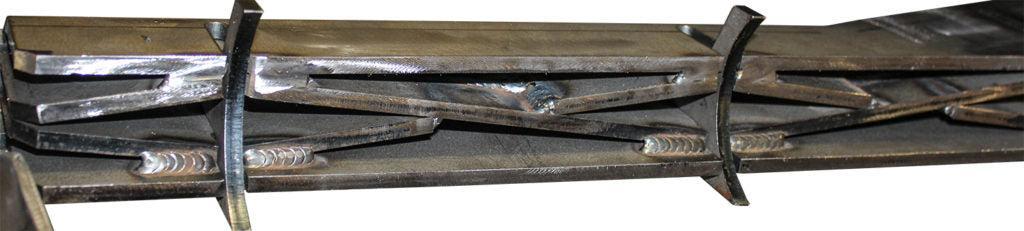

• Inner x-braces converge to an outer clam-shell casing that is then welded on all contact points, shoring up any potential for flexing and movement on several axes

Notes

• This Truss is NOT a direct fit item and will require skilled fitment and installation.
• The cutting, grinding, and welding needs of this part mandate that only certified or similarly capable welders attempt to install this unit. Knowledge of dissimilar metals (Cast/Forged/CRS) is highly recommended.
• Due to variances in production methods, castings, and model year changes, it might be necessary to trim/grind/fit both the Truss and the Axle
