2005-2007 Cummins Torquemaster 48RE Transmission W/ TVV Stepper Motor W/ Auxiliary Filter Kit & Billet Input (4WD) (1064234BF)
Description
Fits
| Year | Make | Model | Engine |
| 2005-2007 |
Dodge Ram |
2500/3500 4WD |
5.9L Cummins & 48RE Trans. |
When you purchase a BD transmission and torque converter package, you're snagging a perfectly matched set! Each transmission also includes BD's own heavy-duty pan for added fluid space. Most packages includ a auxiliary transmission filter kit for added protection. Featuring a durable Billet Input Shaft that can handle the intense power of rapid acceleration and high torque, this is the perfect match for the ProForce 3 or Hi5 torque converter.
Part Number: 1064234BF
Features
- Increase the durability of your drivetrain
- Stock thrust bushings replaced with roller Torrington bearings
- Every transmission is tested on a dyno
- Upgraded Valvebody
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Billet band strut
- Billet band lever
- Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
- Billet "Big" fine spline input shaft
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- High temp/energy Raybestos band
- Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
- Upgraded governor solenoid
- Cooler line case saver in every transmission
- BD auxiliary full flow filter kit for extra protection
- BD rigid aluminum heavy duty transmission pan
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Pan adds 2qt extra oil capacity
Installation
- 7.5 Hours (Includes swapping of sensors and cooler flush)
- Install - Click Here

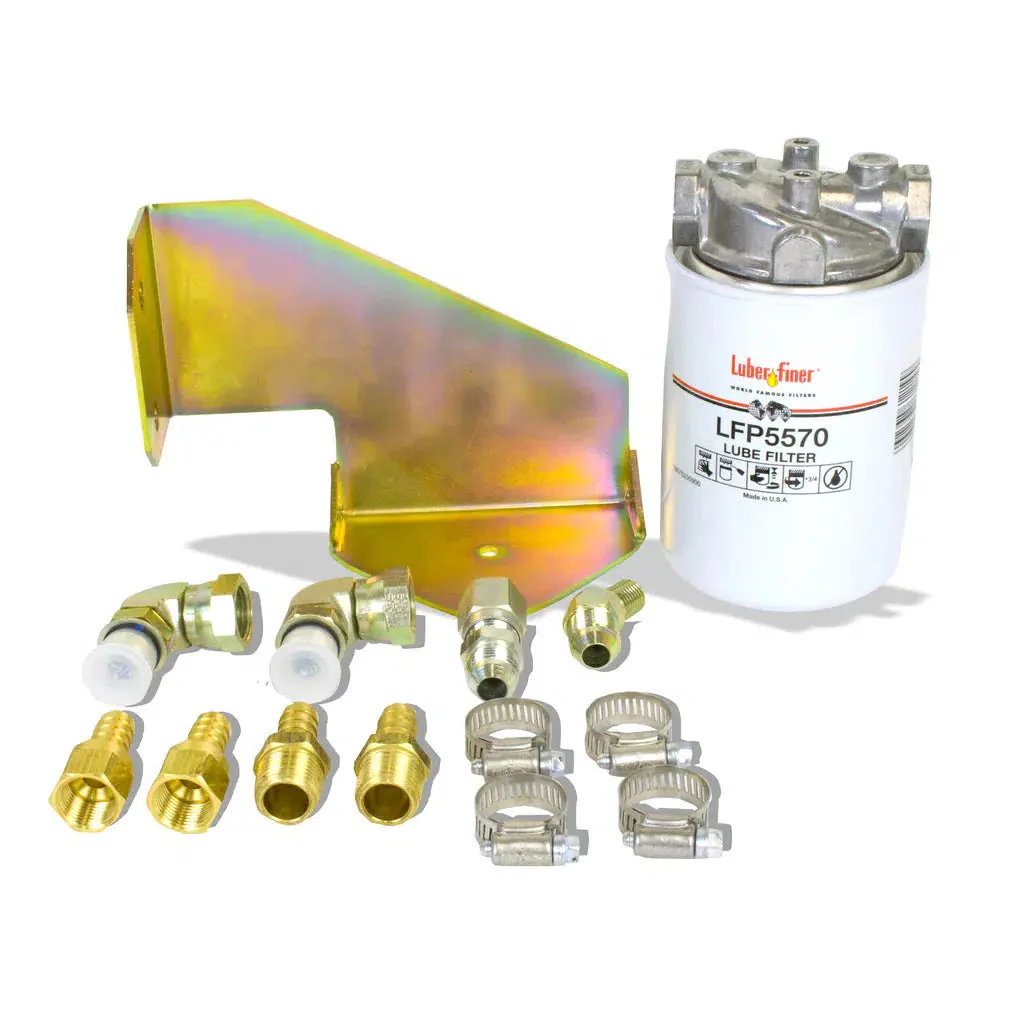

- Auxiliary Filter Kit - Click Here
Warranty
Parts Only - No Race or Sled Pull abuse covered.
- 36 Months
- 150,000 Miles
- Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
- BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
