2005-2026 Cummins 50 Gallon High Capacity Fuel Tank (10-1035)

Description

Fits

Year	Make	Model	Engine
2007-2026	Dodge / Ram	2500/3500	6.7L Cummins
2005-2006	Dodge / Ram	2500/3500	5.9L Cummins

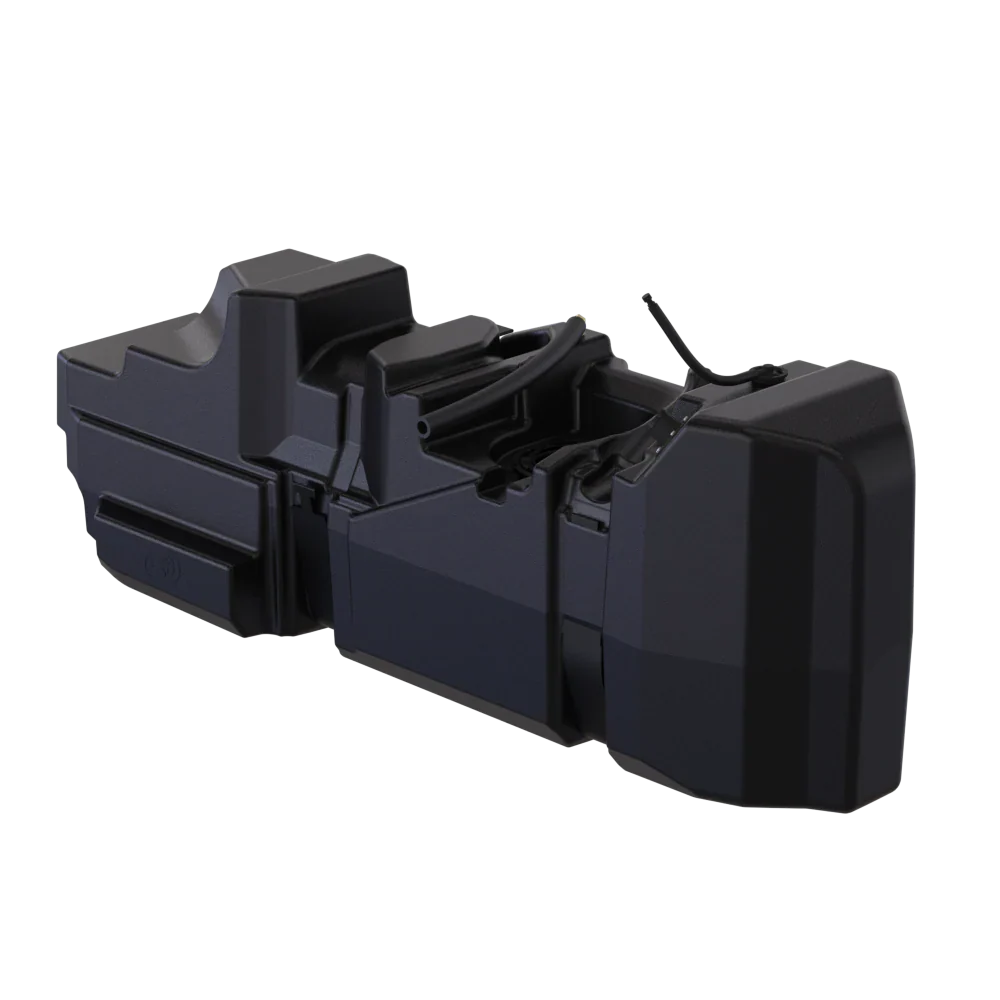

The S&B 50 Gallon High-Capacity Fuel Tank is a direct replacement upgrade for 2005-2026 Dodge/Ram 2500 and 3500 Cummins short bed Crew Cab and Quad Cab trucks. Replacing the factory 31-gallon tank, this larger midship tank adds capacity for longer driving range, fewer fuel stops, and improved convenience when towing, hauling, or travelling long distances.

Part Number: 10-1035

Features

• 50-gallon high-capacity replacement fuel tank
• Replaces the factory 31-gallon tank
• Designed for short bed Crew Cab and Quad Cab trucks Only
• Midship tank design uses available underbody space
• Constructed from cross-linked high-density polyethylene
• Compatible with high-flow diesel pumps for smooth filling
• Reuses the OEM sending unit

Specifications

Compatible with OE Skid Plate	No
Ground Clearance Compared to OE Tank	-2" to 3"
OEM Capacity	31 Gallons
Sending Unit	OEM
Straps Included	Yes
Street Legal in All US States	Yes
S&B Capacity	Approximately 50 Gallons
Tank Type	Midship

Notes

• The fuel gauge will continue to work however the distance to empty will not be accurate. There is no way to update the fuel tank size for the distance to empty to be accurate.
• OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons

Warranty

Diesel Fuel Tanks

S&B replacement fuel tanks have a lifetime limited warranty for the original purchaser.
