2005-2024 Cummins S&B 55 Gallon Replacement Fuel Tank (MC-SB) (10-1009)

Description

Fits

Year	Make	Model	Engine
2005-2024	Dodge Ram	Ram 2500-3500 Mega Cab Short Box	5.9L/6.7L Cummins

If you're using your truck for long hauls or despise fueling up frequently; these S&B tanks will increase your range up to 1100 miles or approximately 1600 kilometers. And with plug & play installation, these tanks are some of the best you can get.

Part Number: 10-1009

Features

• Midship 55 Gallon Tank
• 24 additional gallons of fuel
• Mounts in stock location
• Occupies the space forward of the OEM fuel tank
• Fuel gauge will still be operational (distance to empty will be based off stock fuel capacity) you will have an 1100 range but your distance to empty will show  620 (20 MPG * 31 gallons)
• 1/4" Crosslink polyurethane
• Not compatible w/ OE skid plate

• Dimensions 74.13" X 15.94" X 23.36"
• Drain: No

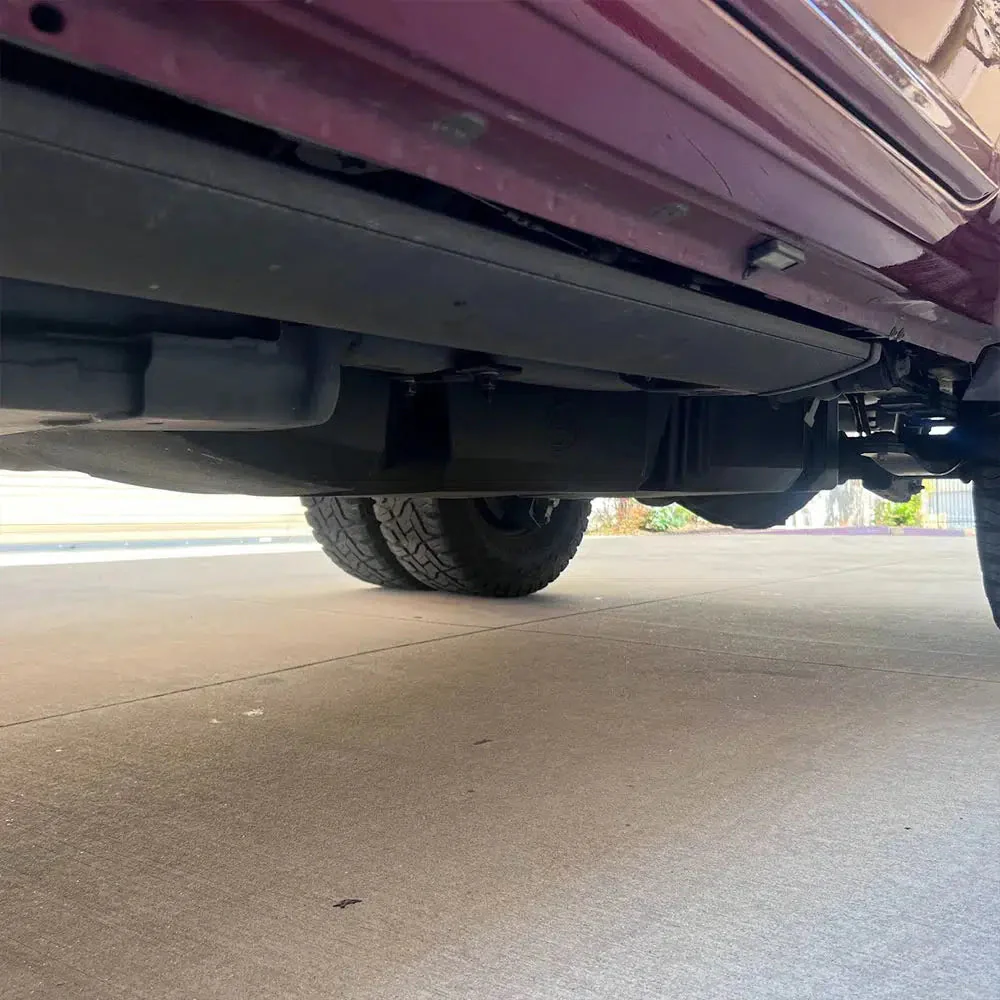

• Ground Clearance compared to OE tank: 4.5" lower

• Sump: No

• Dry weight 40lbs

Notes

• The fuel gauge will continue to work however the distance to empty will not be accurate. There is no way to update the fuel tank size for the distance to empty to be accurate
•  OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons
• The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically
• Auxiliary Fuel Tanks void will void the lifetime warranty on S&B replacement tanks
• Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

Warranty

Diesel Fuel Tanks

S&B replacement fuel tanks have a lifetime limited warranty for the original purchaser. If there is a problem with an S&B tank related to defect, materials or workmanship, S&B will replace it. All terms of the S&B Million Mile Limited Warranty also apply to S&B fuel tanks. Damage to an S&B fuel tank resulting from improper installation or use will not be covered by this warranty.
