2006-2010 Duramax Max Flow Bridge & Cold Side Tube (Behind Alt) (004-HSP)

Description

Fits

Year	Make	Model	Trim
2007-2010	Chevrolet	Silverado 2500 HD	LT, LTZ, WT
2007-2010	Chevrolet	Silverado 3500 HD	LT, LTZ, WT
2007-2010	GMC	Sierra 3500 HD	SLE, SLT, WT
2007-2010	GMC	Sierra 2500 HD	SLE, SLT, WT



Increase performance and flow with this upgraded 3" Max Flow Bridge. This precision cast and CNC machined bridge section allow for maximum efficiency, as well as, a perfect fit every time. This two-piece design allows for a much easier installation than the other kits on the market. Two M8 studs, 12-point nuts, and a high-strength O-ring locate and hold the 3" bridge together to eliminate the possibility of boost leaks. HSP's bridges have been pressure tested to over 100 PSI to ensure your truck can perform to its highest potential.

This component will not only increase the efficiency of your Duramax but also provide a solution to the factory unit which is very restrictive and prone to boost leaks. This kit comes with a 3" boot to pair with the factory cold side. This cold side tube in combination with the max flow bridge is best suited for factory or drop-in replacement chargers, as it resembles the factory intercooler routing.

Part Number: 004-HSP

Features

• Increase performance and spool up
• Port matched CNC machined bridge section
• Better fitment over hand-fabricated bridge section
• Powder coat option for an appealing engine bay
• Two-piece bridge design for easier install than other Y-bridge kits on the market
• Cold-side routes in a factory location for a seamless look

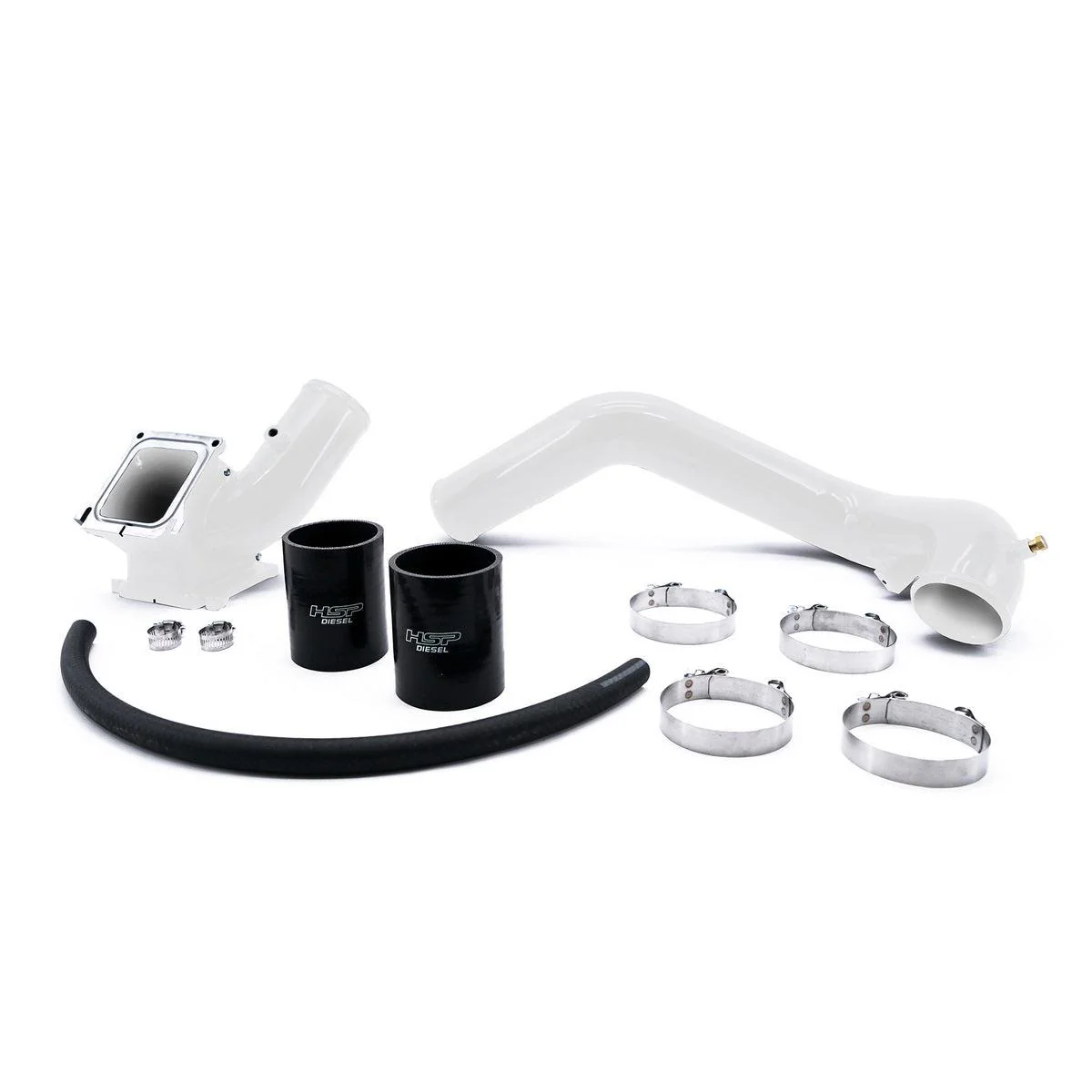

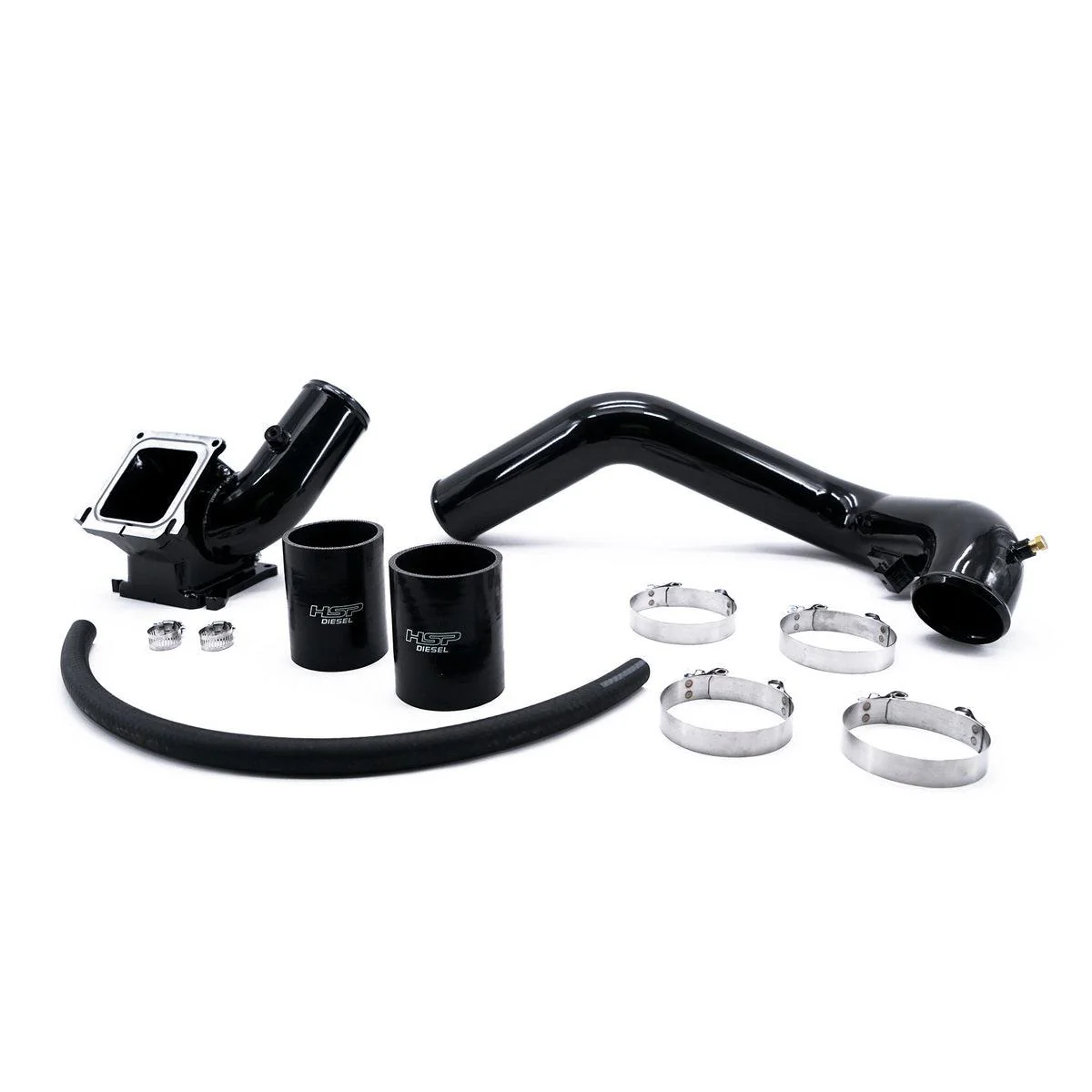

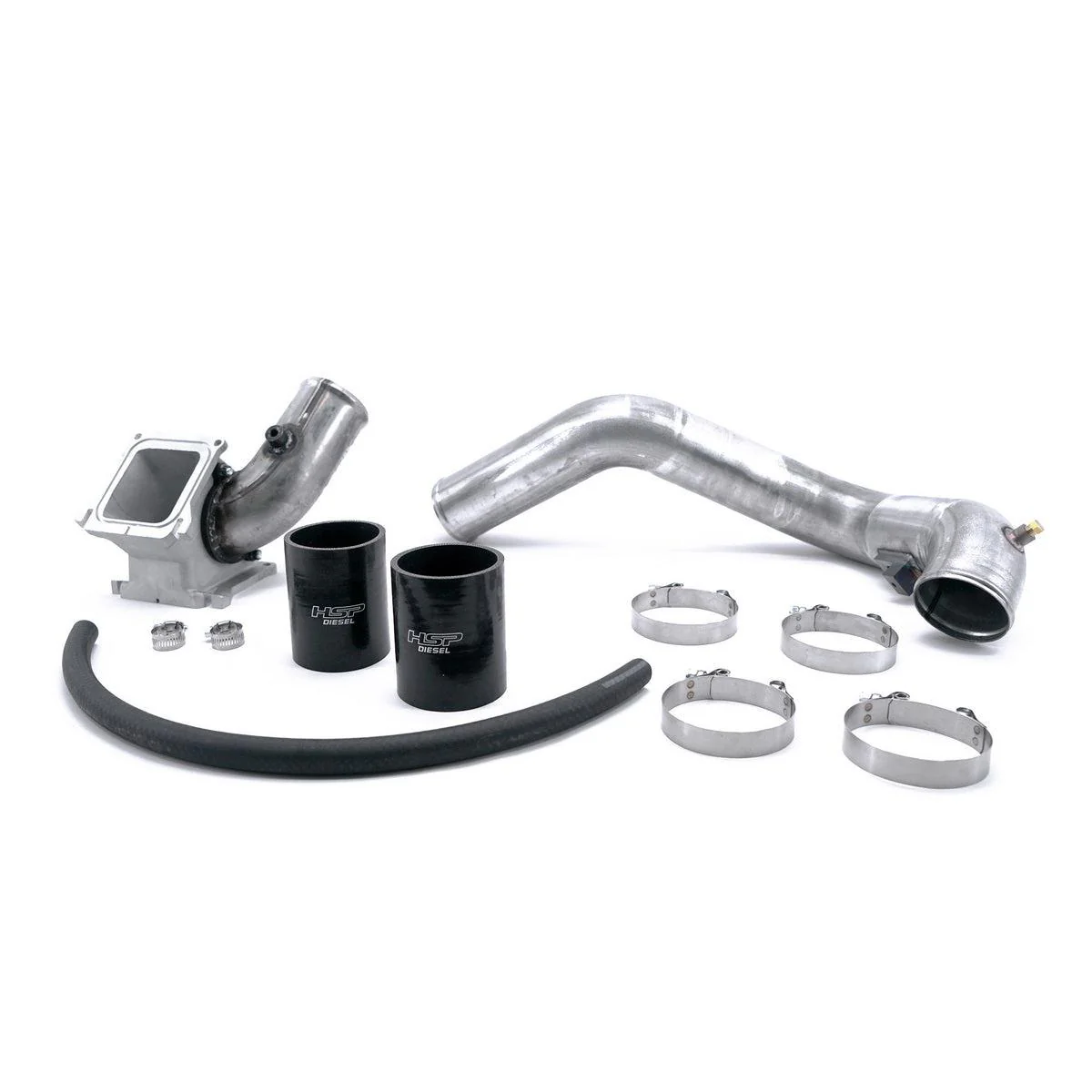

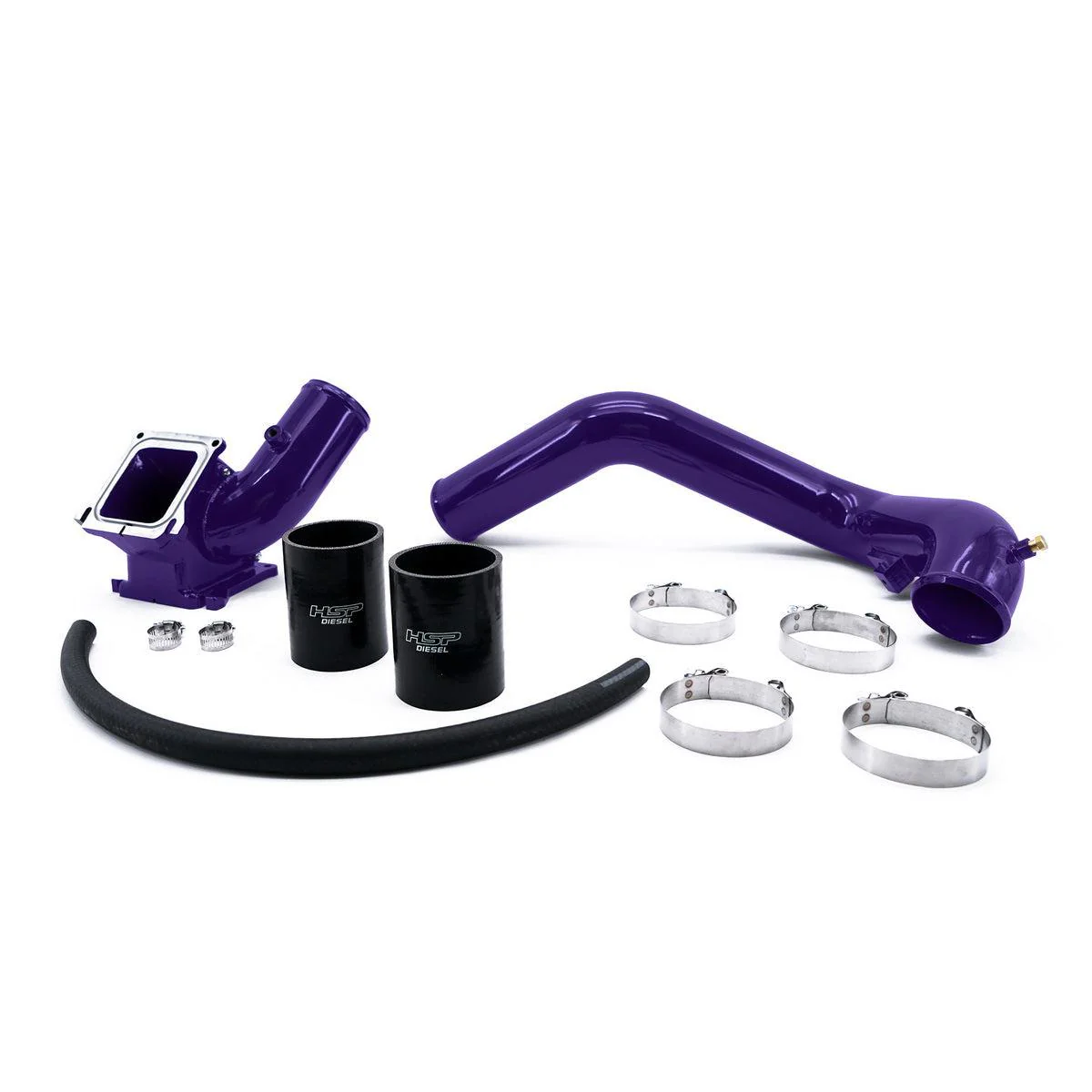

Includes:

• 1x Precision CNC machined Bridge section
• 2x 3x4" Straight Boots (430-RFAB)
• 4x 3" T-Bolt Clamps (422-RFAB)
• 24" 5/8" Heater Hose (401-RFAB)
• 2x 5/8" Worm Gear Clamps (403-RFAB)
• 2x Bridge Neck Stud (902-RFAB)
• 2x Bridge Neck 12-Point Nut (903-RFAB)
• 1x Bridge Neck O-Ring (670-RFAB)
• 1x 1/8" NPT Plug

Notes

Compatible with:

• LBZ: 06-07 VIN Code 2 or D, LMM: 07.5-10
