2007-2021 Tundra 4" Rear SST Lift Kit (69-5475)

Description

Fits

Year	Make	Model
2007-2021	Toyota	Tundra



Due to ReadyLift's ever-popular 4" SST Lift Kit, they've identified a consumer desire to engineer a similar kit for the Toyota platform.  This 4" Rear SST Lift Kit provides you with everything needed to safely, properly, and effectively lift your Tundra without sacrificing ride quality, handling, or putting stress on other suspension components. Featuring DOM steel tube upper Control Arms with extended-duty ball joints, these retain OEM ball joint angles while providing necessary strut/coil over clearance during suspension droop cycling.

Part Number: 69-5475

Features

• 4" Front Lift/ 2" Rear Lift
• Designed to retain OEM ball joint angles
• Provide necessary strut/coil over clearance during suspension droop cycling
• Retains OEM alignment geometry
• No modifications nesessary
• Maintains factory ride quality & handling

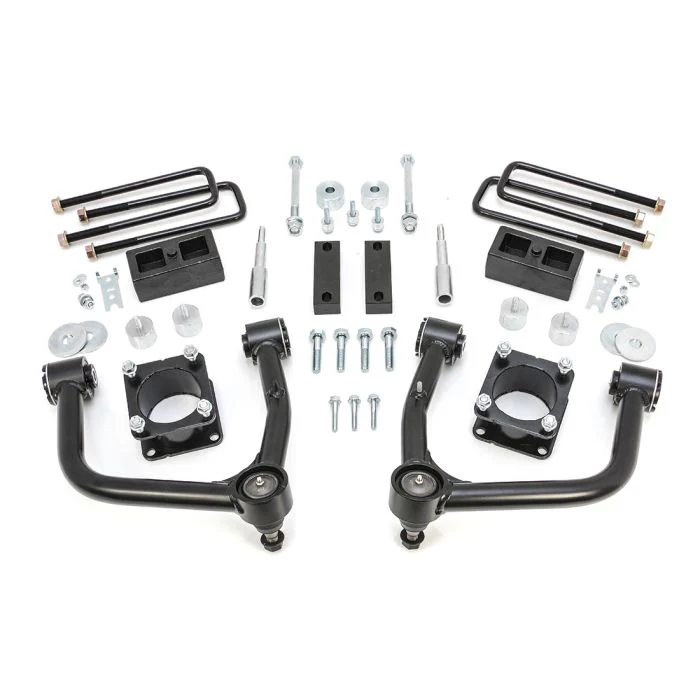

Includes:

• Strong DOM powder-coated tube steel upper Control Arms
• HD ball joints & TCT free-floating pivot bushings
• Precision-crafted upper strut extensions
• Differential drop brackets lower the diff on 4WD models
• Sway bar frame mount spacers
• Skid Plate Spacers
• 10.9 grade Hardware
• OEM Style Cast Blocks

Additional Info

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 for no rub on a 9" wide wheel with +25 offset
• 17" - 35X12.5R17
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35X12.5R22

Notes

• Not for use on 2015-21 Tundra TRD Pro w/ Bilstein TRD Pro shocks
• Model-specific rear blocks are designed FOR the Toyota Tundra. These are not universal blocks. These are OEM-equivalent tapered cast iron rear blocks just like the factory would make.


Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
