2011-2014 Duramax AirDog II-5G 220GPH Lift Pump(A7SABC514)

Description

Fits

Year	Make	Engine
2011-2014	Chevrolet	LML 6.6L Duramax

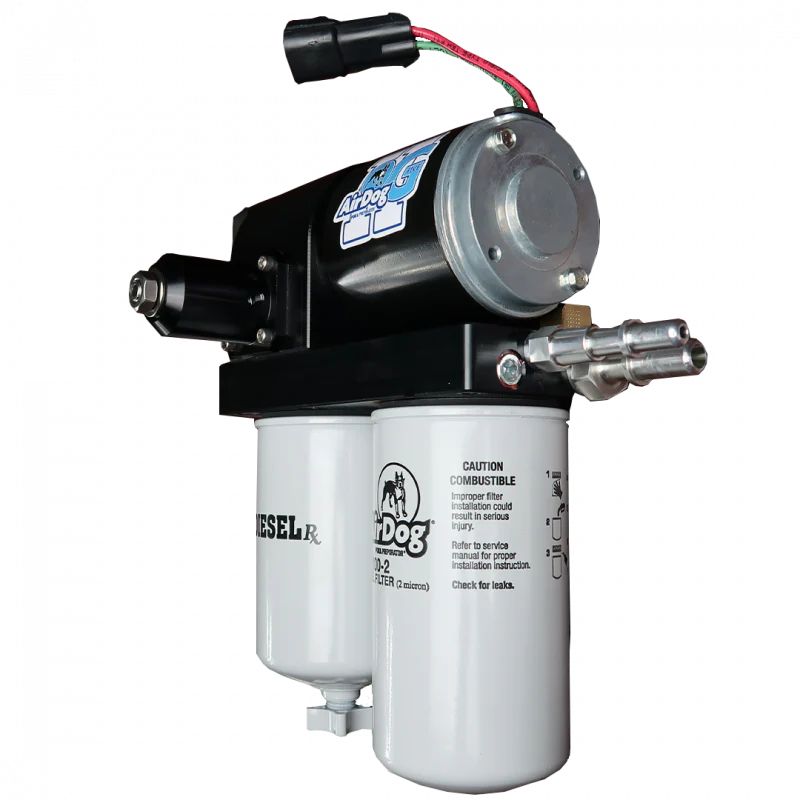

This is the AirDog II-5G DF-220 fuel system for the 2011-2014 Chevy Duramax. This diesel lift pump mounts to the factory frame standoff in front of the fuel tank using our cradle bracket. A 5/8in draw straw is installed in the fuel tank to draw fuel to the pump. The pressure side connects directly to the factory 1/2in fuel line on the frame. The AirDog Air/Vapor return is sent back to the tank through the factory 12mm” suction line once the module is modified.  This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks (1000 HP and above). Check out the installation manual for a list of parts that are included in this kit.

Part Number: A7SABC514

Features

• 200GPH Lift Pump
• For use on 1000+HP Trucks
• Mounts to the frame
• 5/8 draw straw
• Connects to factory fuel line
• Ideal for heavily modified trucks over 1000 HP
