2012-2016 Duramax Intercooler Piping Kit (LML-INT-A103-0527)

Description

Fits

Year	Make	Model
2012-2016	Chevrolet/GMC HD	Duramax LML w/ 6.6L

Select custom colors are not regularly stocked; please allow an ETA of 2-3 weeks for coating.

NOTE: The Throttle Valve Off Option will delete the Grid Heater. If you select this option, you will also require custom tuning.

Improve the airflow of your 2012-2016 LML Duramax with our Dirty LML piping kit. This comprehensive package is designed to replace restrictive OEM components with precision-engineered parts that optimize airflow, reduce inefficiencies, and look damn good while doing it.

Built from 6061 aluminum, TIG-welded, and powder-coated in-house, this kit is durable and visually impressive. This kit replaces the OEM Clip Ring Design with high-quality silicone boots and stainless steel T-bolt clamps to improve sealing and enable higher boost pressures without leaking. Whether you're upgrading for performance, reliability, or aesthetics, this kit is built to meet your needs while allowing flexibility for further modifications.

Part Number: LML-INT-A103-0527

Why Shop Dirty?

• Canadian-Made Performance: High-performing parts made in-house in our shop in West Kelowna and sourced from across North America with the highest quality standards.
• Born in the Shop: Our parts are engineered with real-world experience. Whether it's an OEM fix or a performance upgrade, we build what we know works. We make our parts to solve real-world problems.
• Dirty Made Quality: We aren’t just designing the kits; we are installing them every day in our own shop. We use our own products every day. From the first weld to the last bolt, we build tough gear that actually fits, handles abuse, and looks the part.

Features

• Replaces the restrictive OEM cast-aluminum intake for improved airflow.
• Smooth interior and a circular cross-section minimize air boundary-layer drag.
• Four-axis CNC-machined flange ensures a smooth, efficient transition,
• The throttle valve-off option eliminates the grid heater and throttle valve, reducing restrictions.
• Quick coupler design provides compatibility with OEM or aftermarket intercooler piping.
• 6061 aluminum construction with TIG-welded, high-quality welds,
• Powder-coated finish with customizable color options,
• High-quality Dirty Silicone boots and stainless steel clamps for improved stability and ability to hold higher boost pressure,

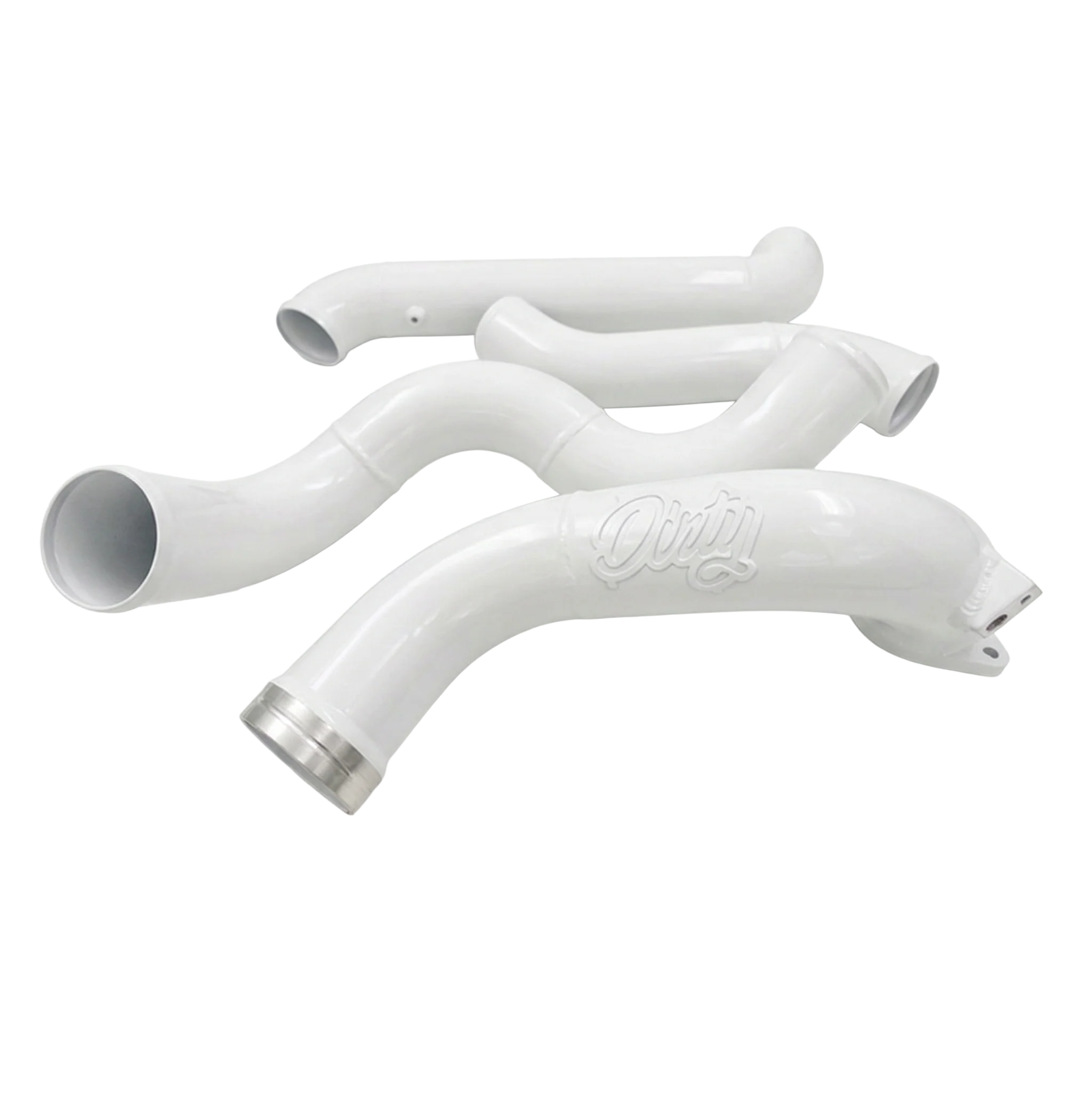

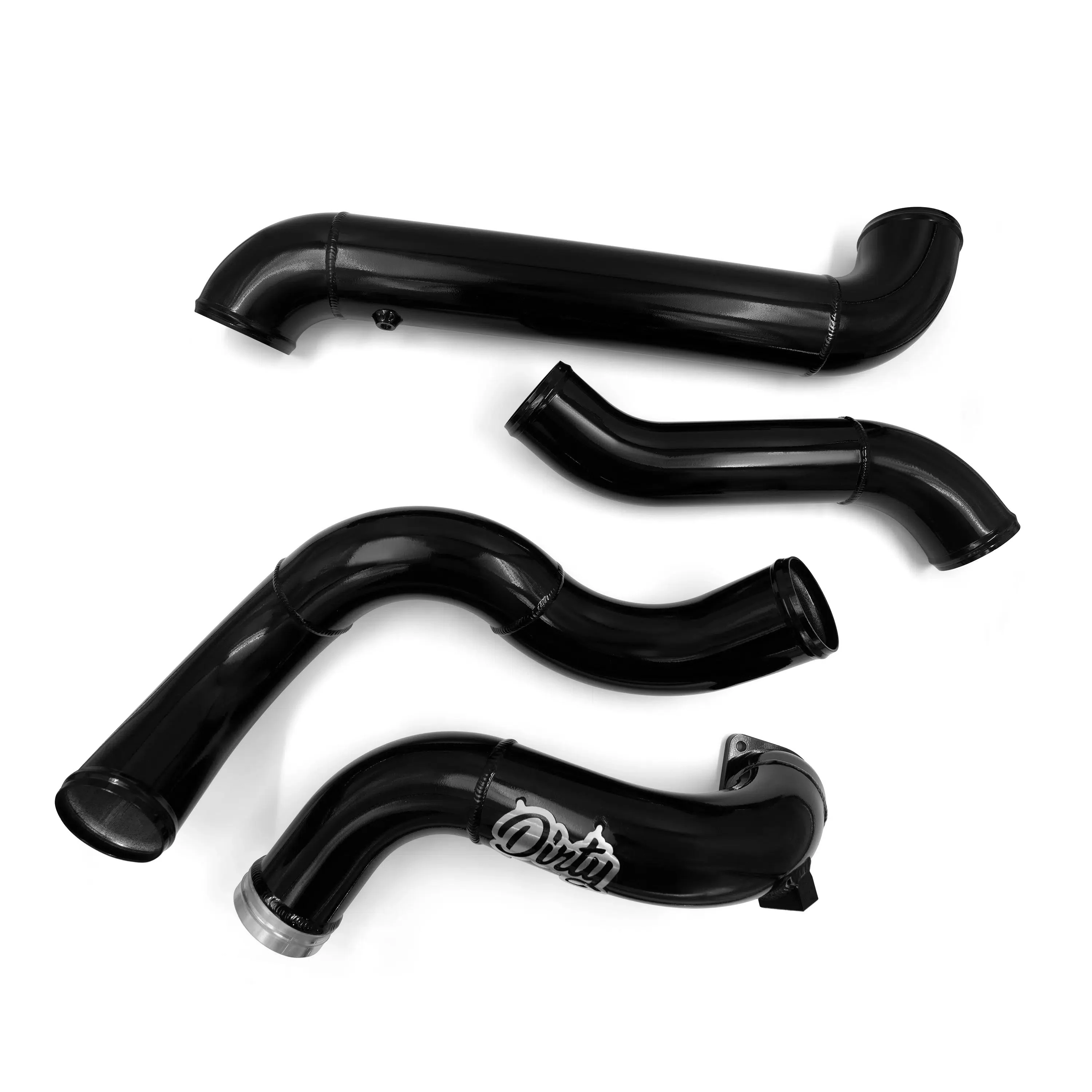

Includes

• (1) Cold Side Crossover Pipe with CNC-machined flange (LML-INT-A029 or LML-INT-A027)
• (1) Oversized cold side intercooler pipe (LML-INT-A094)
• (1) Two-piece hot side aluminum piping with high-quality TIG welds (LML-INT-A095)
• (1) Set of Custom SAE Spec Silicone Couplers & North American T-Bolt Clamps
• (1) Resonator Delete Plate

Specifications

Material	6061 Aluminum
Origin	Canada

Additional Information

Cold Side Crossover Pipe: Features a smooth interior finish and circular cross-section for superior airflow dynamics compared to stock. A four-axis CNC-machined flange ensures seamless transitions into the intake plenum, reducing turbulence and improving performance. For those ditching the throttle valve, the kit further minimizes restrictions by eliminating the grid heater and throttle valve assembly.

Passenger-Side Intercooler Pipe: This oversized 3.5" pipe (vs. the failure-prone 3" OEM version) delivers smoother airflow, greater durability, and a precise fit. Say goodbye to weak spots and airflow bottlenecks.

Driver's-Side Intercooler Pipe: A durable two-piece design made to make installation significantly easier in a tight engine bay.

Installation

LML-INT-A103-0527 (Without Throttle Valve) Installation Instructions

LML-INT-A103-0528 (With Throttle Valve) Installation Instructions
