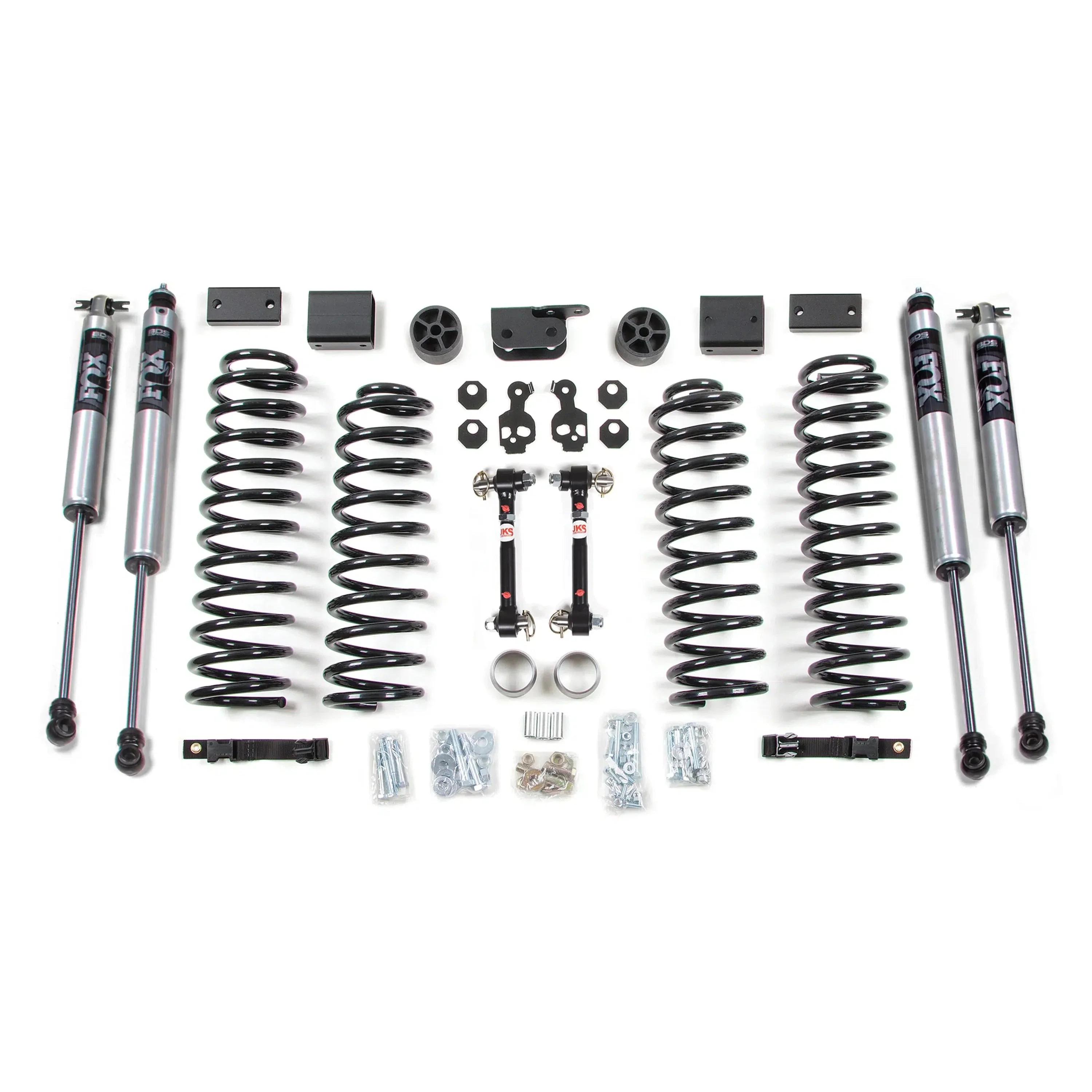

2012-2018 Wrangler 3" Lift Kit (BDS1416H)
Description
Fits
| Year | Make | Model |
| 2012-2018 | Jeep | Wrangler |
The Wrangler has always been a go-to for a lot of off-road enthusiasts, give it a little extra kick and capability with this BDS 3" lift. Featuring 3" Pro-Ride coil springs capable of full coil bind & 2" bump stop extensions to control the compression travel, but increase wheel travel. With fixed or quick disconnect sway bar links.
Part Number: BDS1416H
Features
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Rear track bar bracket repositions rear axle under vehicle
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 35" tires
Wheel & Tire Fitment:
- 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
Additional Info
Sway Bar Link Option
Disconnects:
- Gain 30% more axle articulation by disconnecting your front sway bar
- Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
-
Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
- Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
Fixed Links:
- Required for use on Rubicon models with electronic disconnect.
- Improves handling with proper sway bar operating angle
- Heavy-duty steel construction with zinc finish
- Polyurethane hourglass bushings for long life and quiet operation
Notes
- Removing the OE spring isolators will result in a 1" lift if desired
- 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
- This kit is FMVSS No.126 Compliant
- This kit is right-hand drive compatible
