2015-2022 Colorado/Canyon 3.5" SST Lift Kit (69-3535)

Description

Fits

Year	Make	Model
2015-2022	Chevrolet/GMC	Colorado/Canyon

Note: Does not fit ZR2 or diesel applications

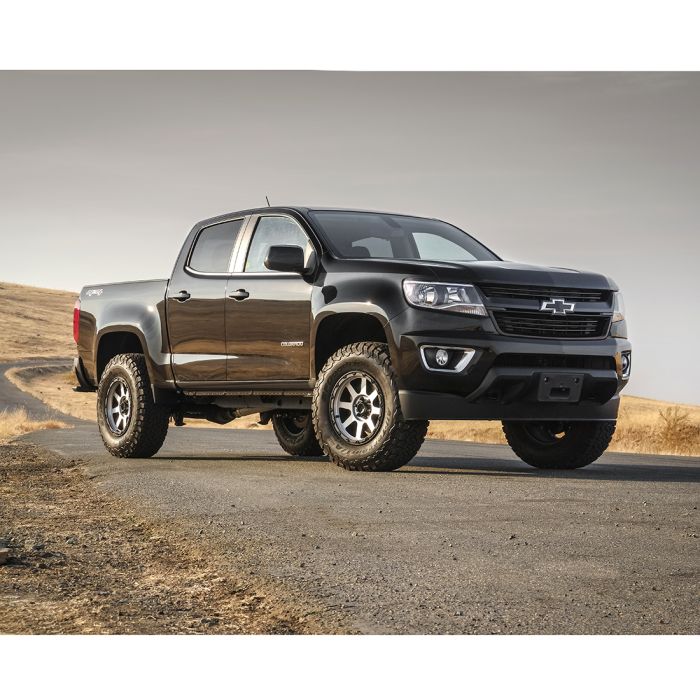

The perfect mid-level lift kit for this mid-size truck! Featuring HD tubular steel upper control arms with adjusted ball joint pivot angles and providing 3.5" of lift in the front and 1.5" in the rear for a modest leveled lift that will never compromise ride quality, articulation and maintains factory geometry and handling for overall fantastic aesthetic and superior off-road capability!

Part Number: 69-3535

Features

• Provides an aggressive stance with a slight rake
• CNC-machined aircraft-grade billet Aluminum front top hat replacement lift spacers
• HD OEM-style cast iron rear blocks
• Tubular steel upper control arms with adjusted ball joint pivot angles, housing a heavy-duty ball joint

• Maintains the factory ride, handling, and suspension geometry
• Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology "no-cut" lift kit.

Wheel & Tire Fitment:

• Allows for up to 17x9 +18 wheel - 285/70R17 tire
• 285/60-20 max with trimming

Additional Info

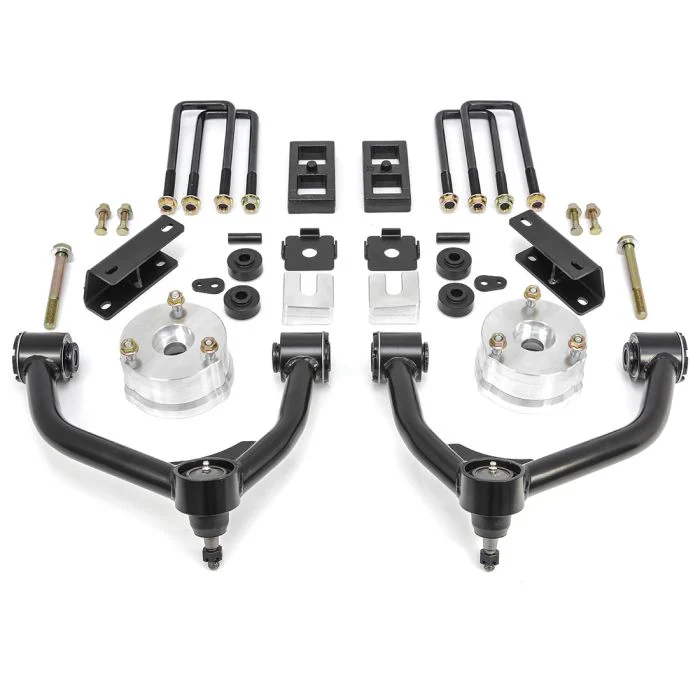

Includes:

• 2- UCA with TCT maintenance-free pivot bushings
• HD ball joints
• 2- Replacement Strut Top Hat
• 2- Front Diff Spacers
• 2- Diff Spacer retainer plates
• 1- Driver Sway Bar Drop
• 1- Passenger Sway Bar Drop
• 2- Laser Cut Washers
• 1" Cast Block w/ U-Bolts

Notes

• For gasoline engine applications only
• Use of Auto 4 Hi feature not recommended

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view the instructions
