2017-2022 Powerstroke PAP Commuter 2.5-3.5” Lift Kit (CS-FLVL-COM-CS-17-PAP)

Description

Fits

Year	Make	Model
2017 - 2022	Ford	F-250 Super Duty
2017 - 2022	Ford	F-350 Super Duty

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

These shocks have been valved for Progressive Add-a-Packs or those running stock rear springs ONLY

The perfect comprehensive beginner-level suspension setup for your Powerstroke, with front linear-rate coil springs that provide an ideal leveled out stance, tighter when cornering, and react consistently throughout any compression range, making them more responsive and predictable. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Part Number: CS-FLVL-COM-CS-17-PAP

Features

• Improved handling and stability with the Carli Commuter Suspension System
• Carli-Tuned corrosion-resistant 2.0 IFP shocks
• Valved specifically for use with stock leaf springs or Carli Progressive Add-a-Pack

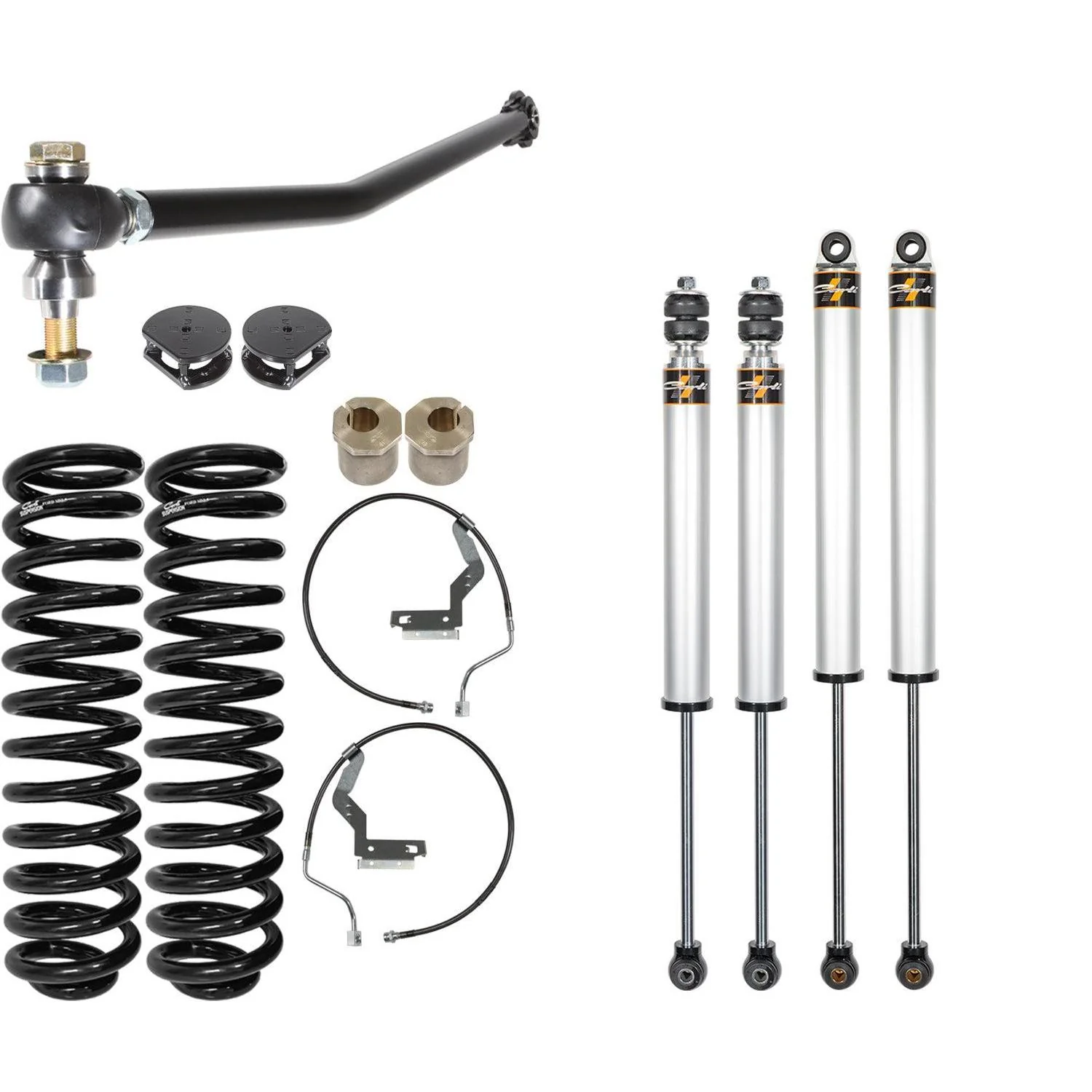

• Includes linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
• Increases wheel travel to 9" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT CS-FSBD-LVL-1723 or 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK - 2.5"/3.5" LIFT CS-FEL-LVL-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5"/3.5" LIFT WITH END LINKS CS-FTSB-LVL-17

  • Rear Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT CS-FPAP-LVL-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-HD
  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • Radius Arms (OPTIONAL): CS-FARA-LVL-05

  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-05
  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723

Notes

• NOT RECOMMENDED for use with the Carli full Progressive Spring Pack
