2017-2022 Powerstroke Commuter 4.5-5.5" Lift Kit (CS-F45-COM-CS-17)

Description

Fits

Year	Make	Model
2017 - 2022	Ford	F-250 Super Duty
2017 - 2022	Ford	F-350 Super Duty

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

The perfect comprehensive suspension setup for your Powerstroke, with front progressive-rate coil springs that provide the perfect blend of comfort and control, similar to Multi-rate coil springs, they stay soft for a smooth ride, but stiffen up as more pressure is applied, ideal if you tow or haul frequently. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Part Number: CS-F45-COM-CS-17

Features

• Experience improved handling and stability with the Carli Commuter Suspension System
• Carli-Tuned corrosion-resistant 2.0 IFP shocks

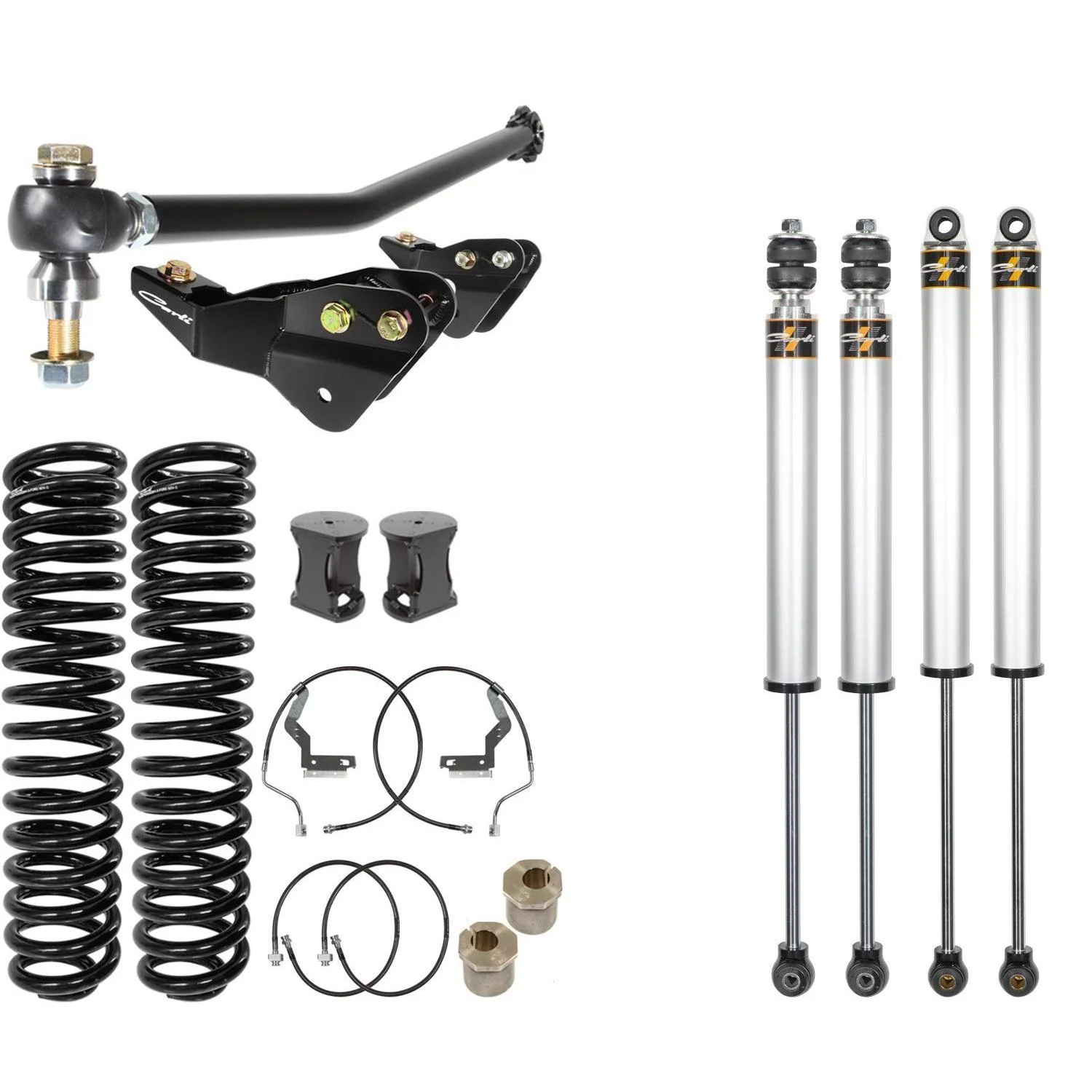

• Front and rear shock package, brake line kit, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar
• Increases wheel travel to 11.0" front and 13.8" rear

• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 4.5"/5.5" CS-FELKIT-45-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 4.5"/5.5" LIFT WITH END LINKS CS-FTSB-45-17

  • Rear Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 3" LIFT CS-FPAP-45-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17-HD

  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • Long Travel Airbags (OPTIONAL): 17-22 FORD F350 4X4 LONG TRAVEL AIRBAGS - 3.5" AXLE TUBE CS-FLTB-17-35 or 17-22 FORD F250 TREMOR, HIGH CAP TOW & F350 SRW 4X4 LONG TRAVEL AIRBAGS - 4.0" AXLE TUBE CS-FLTB-17-40 or 17-22 FORD F350 DRW 4X4 LONG TRAVEL AIRBAGS - 4.5" AXLE TUBE CS-FLTB-17-45

  • Fabricated Radius Arms (OPTIONAL): CS-FARA-45-05
  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-05
  • Carrier Bearing Drop (OPTIONAL): CS-CARRIERDROP-F
  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723
