2017-2022 Powerstroke Dominator 4.5-5.5″ Lift Kit (CS-F45-D30-17)

Description

Fits:

Year	Make	Model
2017 - 2022	Ford	F-250 Super Duty
2017 - 2022	Ford	F-350 Super Duty

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. Loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-F45-D30-17

Features

• Carli-tuned King 3.0 shocks that provide a fantastic on-road ride and superior off-road performance

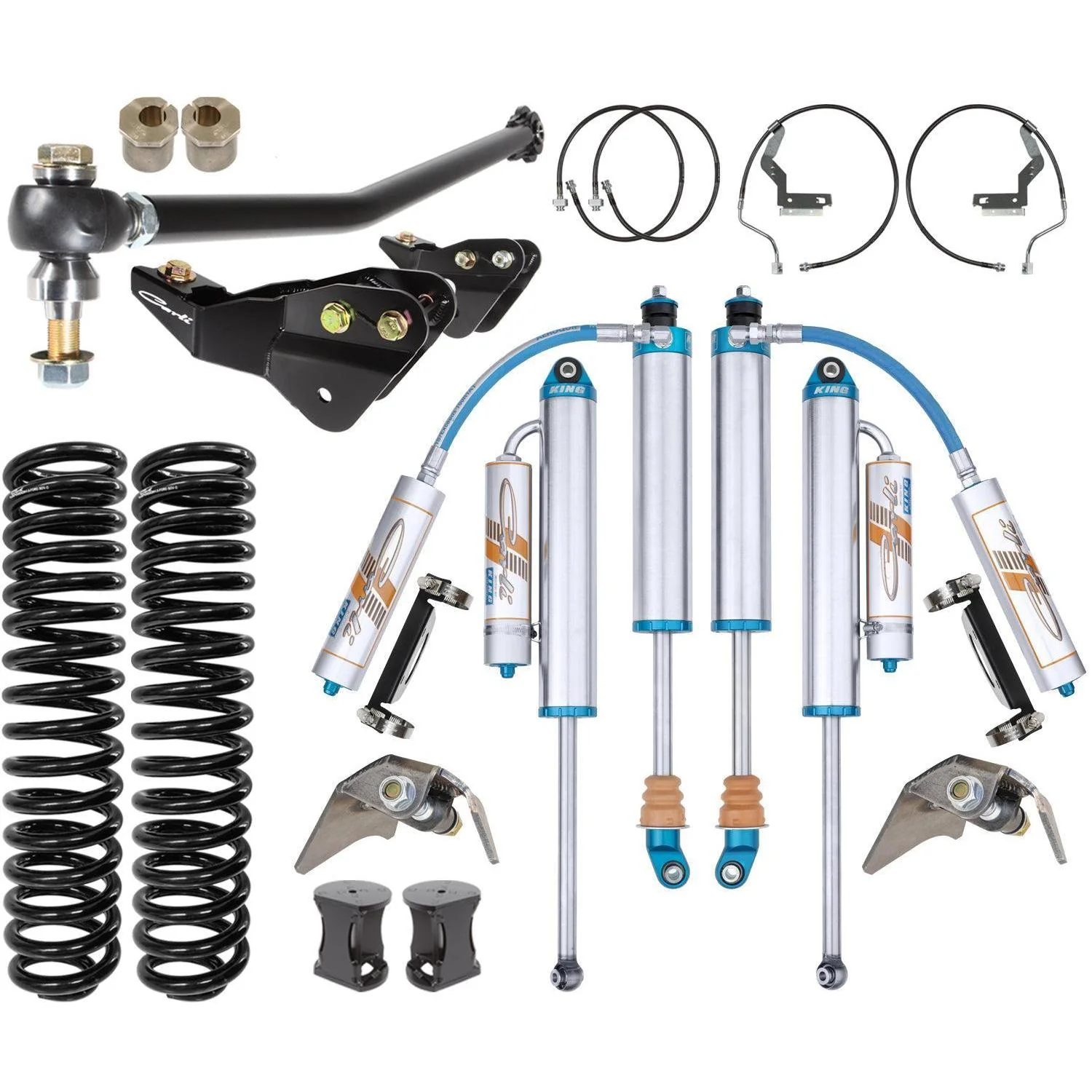

• Front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar
• Increases wheel travel to 10.5" front and 13.8" rear

• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 4.5"/5.5" CS-FELKIT-45-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 4.5"/5.5" LIFT WITH END LINKS CS-FTSB-45-17

  • Rear Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 3" LIFT CS-FPAP-45-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17-HD

  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • Long Travel Airbags (OPTIONAL): 17-22 FORD F350 4X4 LONG TRAVEL AIRBAGS - 3.5" AXLE TUBE CS-FLTB-17-35 or 17-22 FORD F250 TREMOR, HIGH CAP TOW & F350 SRW 4X4 LONG TRAVEL AIRBAGS - 4.0" AXLE TUBE CS-FLTB-17-40 or 17-22 FORD F350 DRW 4X4 LONG TRAVEL AIRBAGS - 4.5" AXLE TUBE CS-FLTB-17-45

  • Fabricated Radius Arms (OPTIONAL): CS-FARA-45-05
  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-05
  • Carrier Bearing Drop (OPTIONAL): CS-CARRIERDROP-F
  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723

Notes

• A Kit SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.
