2017-2022 Powerstroke E-Venture 2.5-3.5” Lift Kit (CS-FLVL-EV25-17)

Description

Fits

Year	Make	Model
2017 - 2022	Ford	F-250 Super Duty
2017 - 2022	Ford	F-350 Super Duty



One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled, which read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

SDI has put an extensive amount of R&D into this user-friendly dial so you can easily adjust Pitch, Roll, Brake, Throttle, Load, and Steering Response. Providing you with unparalleled control and precision in every way for the ultimate suspension setup.

Part Number: CS-FLVL-EV25-17

Features

• Select from Mountain, Street, and Desert modes to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button.
• Pro Mode allows users to adjust the Pitch, Roll, Brake, Throttle, and Steering Response. Don’t worry, if your curiosity gets ahead of you or you failed to track your changes, we’ve implemented a “Restore Default” setting
• Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support, OR max the rear support to prioritize load support

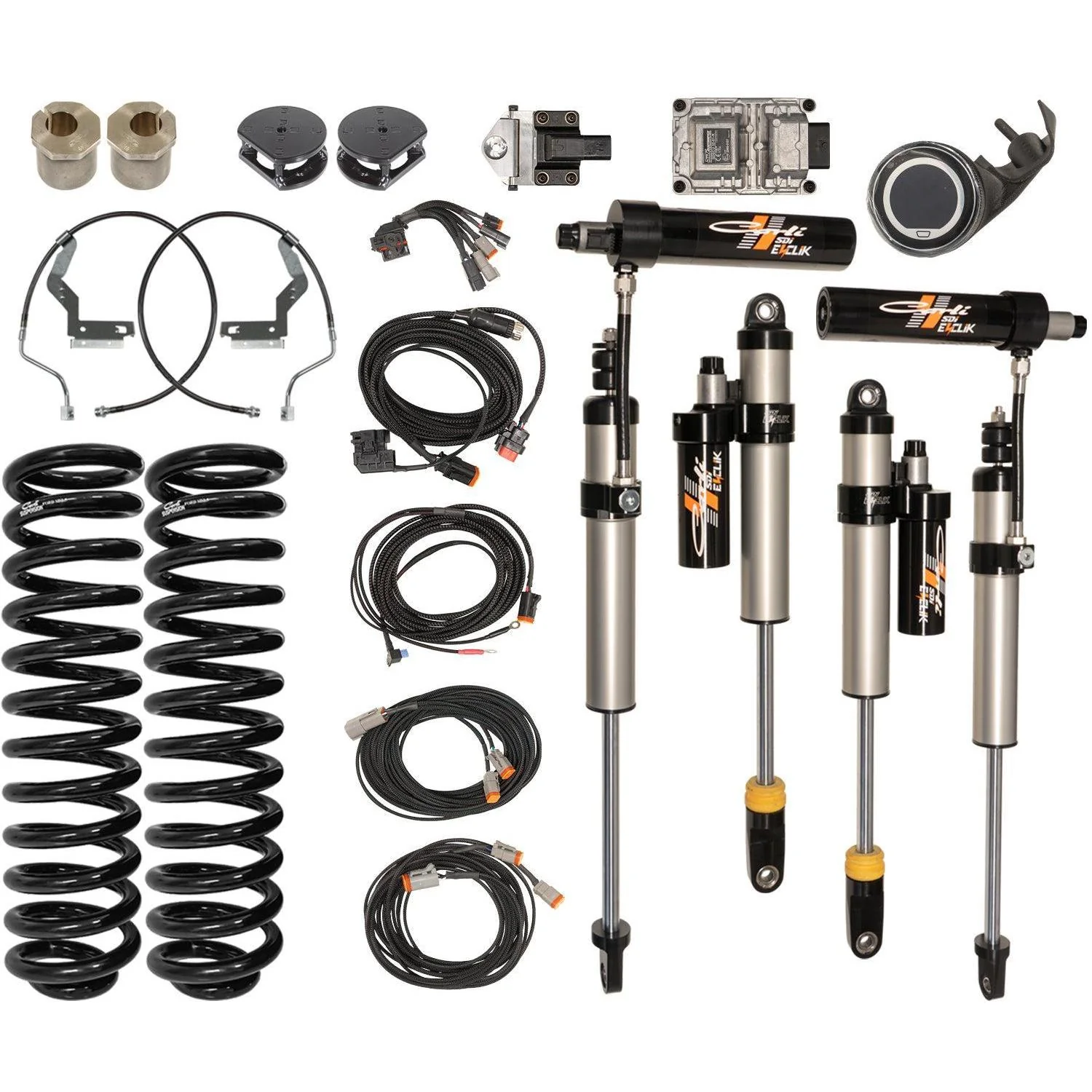

• Front and rear shock packages, linear rate coil springs, brake line kits, bump stop drops, caster correction shims, and adjustable track bars
• Increases wheel travel to 9" front and 13" rear

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723, CS-FEL-LVL-17, or CS-FTSB-LVL-17

  • Rear Leaf Spring Options (REQUIRED): CS-FFSP-LVL-17 or CS-FPAP-LVL-17 or CS-FFSP-LVL-17-HD or CS-FFSP-LVL-17-XHD or CS-FFSP-LVL-17-XXHD
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Long Bed Extension Harness: CS-FEVSPKG-LBEH
  • Radius Arms: CS-FARA-LVL-05
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-05

  • Trophy Hitch: CS-FHITCH-1723

Notes

• Kit requires Carli sway bar drop brackets, Carli long bed extension harness, and Carli progressive leaf springs. These components are sold separately
• Expect 1.5″ lift on 2020+ F250/350 Tremor applications
