2017-2022 Powerstroke Pintop 4.5-5.5” Lift Kit (CS-F45-PT25-17)

Description

Fits

Year	Make	Model
2017 - 2022	Ford	F-250 Super Duty
2017 - 2022	Ford	F-350 Super Duty

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

One of the best off-road suspension systems Carli offers, the Pintop 4.5" lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-F45-PT25-17

Features

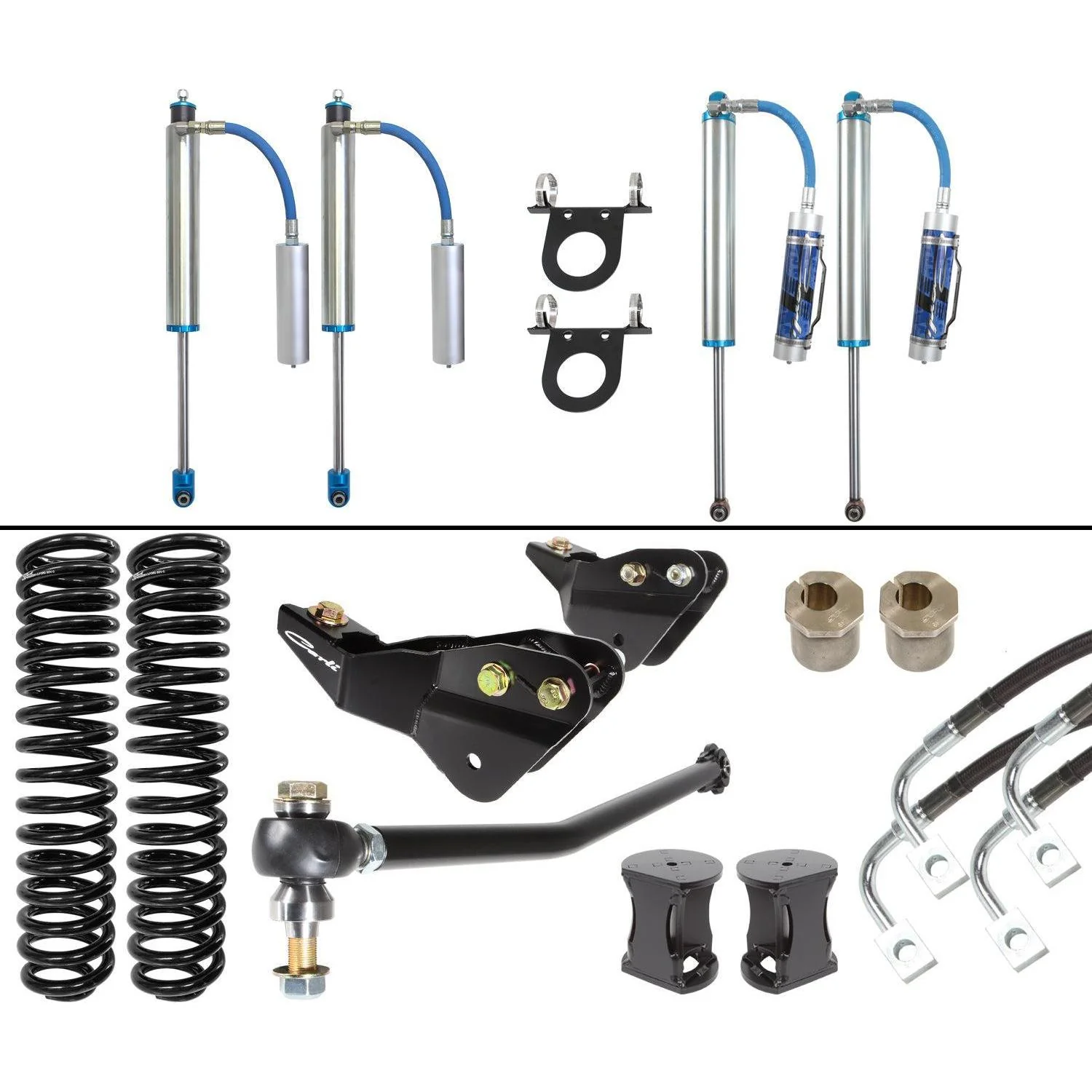

• Front and rear shock package, brake line kit, radius arm drop brackets, bump stop drops, caster correction shims, and an adjustable track bar
• Increases wheel travel to 11" front and 13" rear
• Requires but does not include rear leaf spring option and sway bar option
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
• More fluid volume and piston movement, which results in improved heat dissipation, consistent damping
• Fully rebuildable, serviceable, and tuneable for whatever your preference is

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 4.5"/5.5" CS-FELKIT-45-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 4.5"/5.5" LIFT WITH END LINKS CS-FTSB-45-17

  • Rear Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 3" LIFT CS-FPAP-45-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17-HD

  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • Long Travel Bags (OPTIONAL): 17-22 FORD F350 4X4 LONG TRAVEL AIRBAGS - 3.5" AXLE TUBE CS-FLTB-17-35 or 17-22 FORD F250 TREMOR, HIGH CAP TOW & F350 SRW 4X4 LONG TRAVEL AIRBAGS - 4.0" AXLE TUBE CS-FLTB-17-40 or 17-22 FORD F350 DRW 4X4 LONG TRAVEL AIRBAGS - 4.5" AXLE TUBE CS-FLTB-17-45
  • Fabricated Radius Arms (OPTIONAL): CS-FARA-45-05

  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-05
  • Carrier Bearing Drop (OPTIONAL): CS-CARRIERDROP-F
  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723

Notes

• A “Base Kit” SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.
