2019-2024 Cummins AirDog II-5G 220GPH Lift Pump (A7SABD530)

Description

Fits

Year	Make	Model	Engine
2019-2023	Dodge	Ram	6.7L Cummins

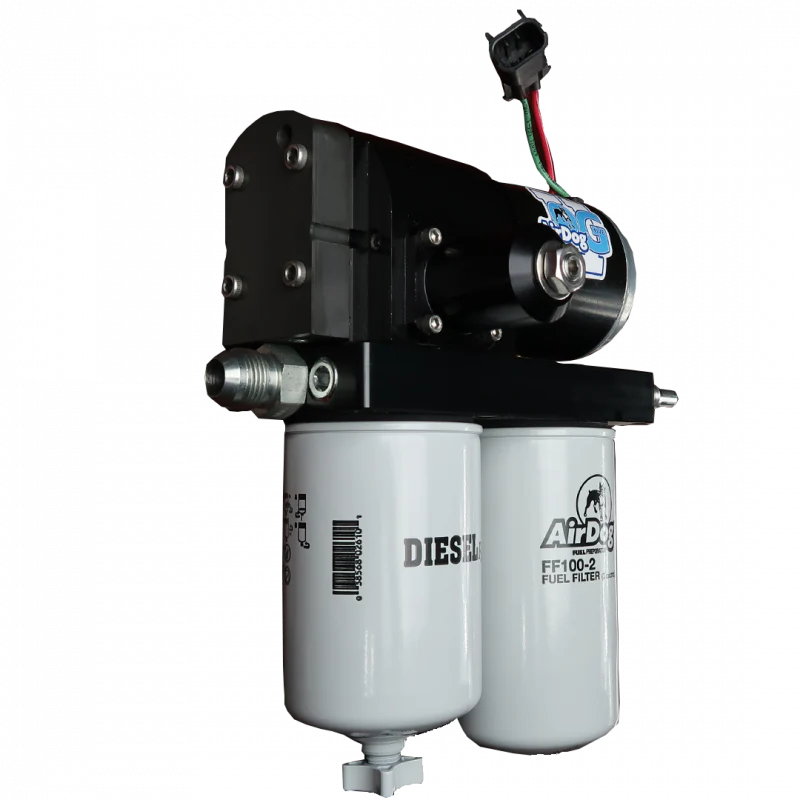

This is the AirDog II-5G DF-220 fuel system for the 2019 to 2023 RAM Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A 5/8" draw straw is used to pull fuel from the tank. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 220GPH (Gallon Per Hour) lift pump system for highly modified trucks. Check out the installation manual for a list of parts that are included in this kit.

Part Number: A7SABD530

Features

• 220GPH Lift Pump
• Mounts to the frame
• 5/8 draw straw
• pressure side connects directly into the side of the factory fuel filter housing
• Ideal for heavily modified trucks

Installation

• Click Here

Warranty

• Click Here
