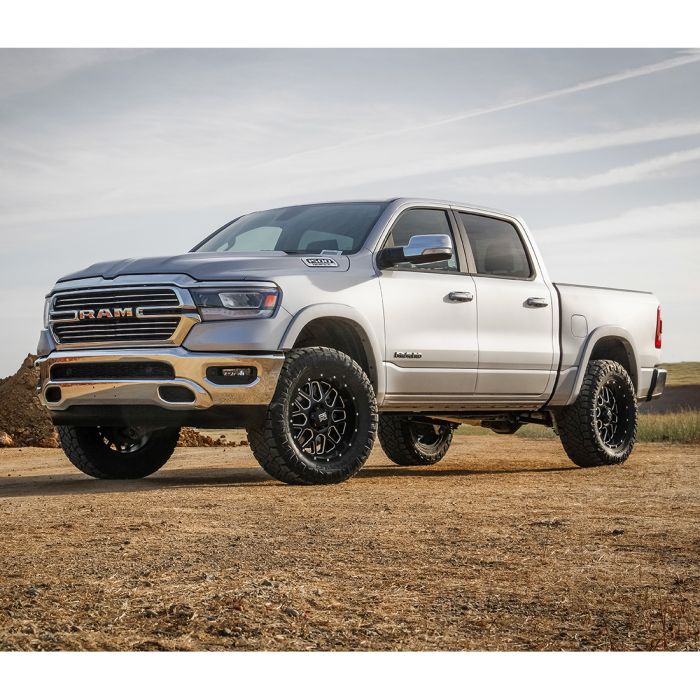

2019-2025 Ram 1500 3.5" SST Lift Kit (Non-Air Ride Equipped) (69-1935)

Description

Fits

Year	Make	Model
2019-2025	Dodge Ram	1500



Featuring DOM tube steel upper control arms with corrected ball joint angles. This ReadyLift 3.5" SST Lift Kit features CNC-machined billet aluminum top mount strut extensions and spring pre-load spacers, providing you with a true 3.5" of front lift without exceeding the CV limits, which works well within the OEM tolerances. Bump stop extensions control compression over any terrain, enhancing your stance, ground clearance, and driving quality.

Part Number: 69-1935

Features

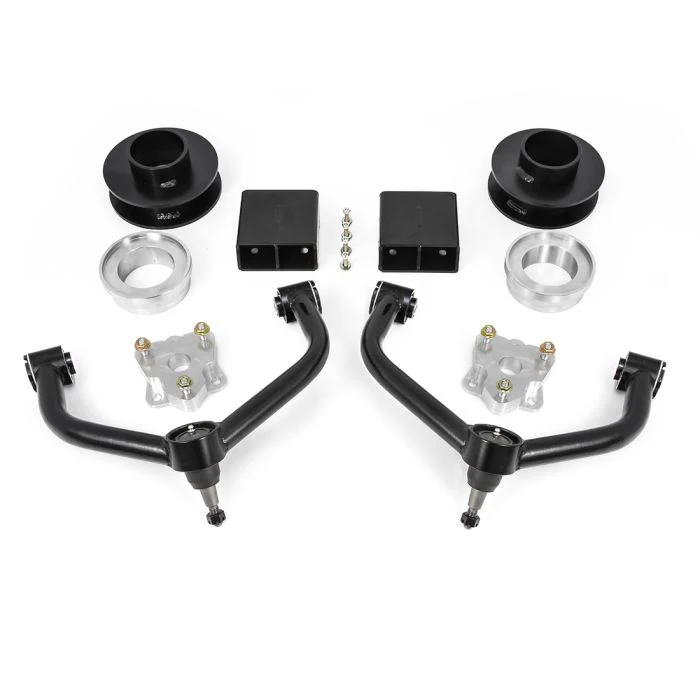

• Tubular upper control arms
• Corrected ball joint cup angles & HD ball joints
• CNC-machined billet aluminum top hat spacers & pre-load spring spacers
• HD fabricated steel rear coil spring spacers
• Fabricated steel rear bump stop landing pads

Tire Fitment:

• Max tire: 35x12.50 on a 20x9 with‚ 0 offset
• If running a 35x12.50-20, the minimum wheel offset is 0 offset on a 9" wide wheel.
• If running a 295/65-20, the minimum is a +18 offset to ensure the tire does not rub the control arm at full turn

Notes

• Not for use on factory air suspension equipped trucks
• Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package
• NOT intended for off-road use or abuse

• Will not fit Ram TRX models
• Check the factory height prior to ordering or installing

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
