2022-2024 Tundra 3" SST Lift Kit (69-52310)

Description

Fits

Year	Make	Model
2022-2024	Toyota	Tundra



ReadyLift has always been a go-to if you're looking for a quick, cost-effective, and safe way to give your Tundra a modest lift without compromising factory suspension components or ride quality and handling. Featuring a front strut spacer to eliminate the hassle, time, and concern of compressing springs, while the rear airbag spacers allow you to maintain the full range of use.

Part Number: 69-52310

Features

• 3" front lift with a 2" rear spacer kit

• Includes strong tubular steel Control Arms
• HD ball joints

• No Cutting of OEM Parts or Welding
• Maintains Factory Ride
• Fully bolt-on

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

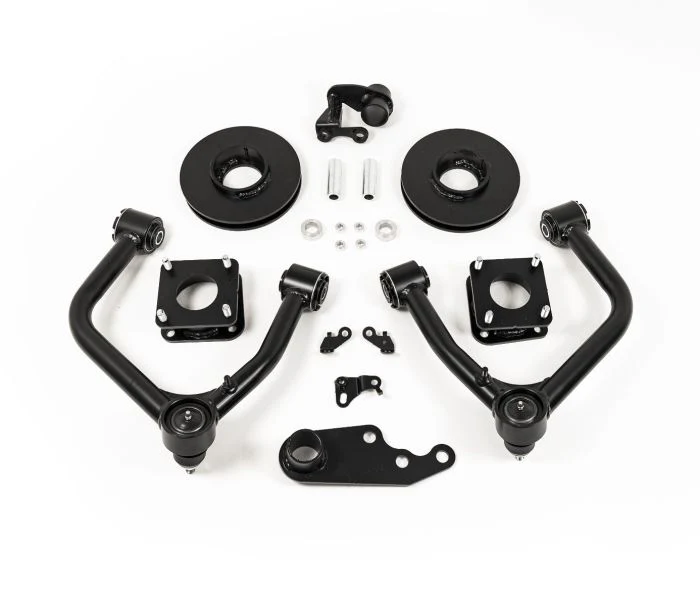

Additional Info

• Front Strut Spacer
• Rear Spring Spacer
• Rear Shock Extension
• Driver & Passenger Upper Control Arm
• Driver & Passenger Front Differential Drop
• Crush Sleeve, Differential Drop Polyurethane Bushing
• End Link Spacer
• Driver & Passenger Brake Line Relocation Bracket
• Rear Brake Line Spacer
• Rear Brake Line Relocation Bracket
• Hardware Pack

Notes

• Kit does not fit Tundra TRD PRO, trucks equipped with Load-Leveling Rear Height Control Air Suspension. The factory TRD Skid plate will not bolt back up once the kit is installed.
• Toyota OEM lift kit cv shafts PT362-3432B and PT362-3431B are recommended by Toyota and required by ReadyLIFT on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer and will not be covered by ReadyLIFT ReadyGuard warranty
