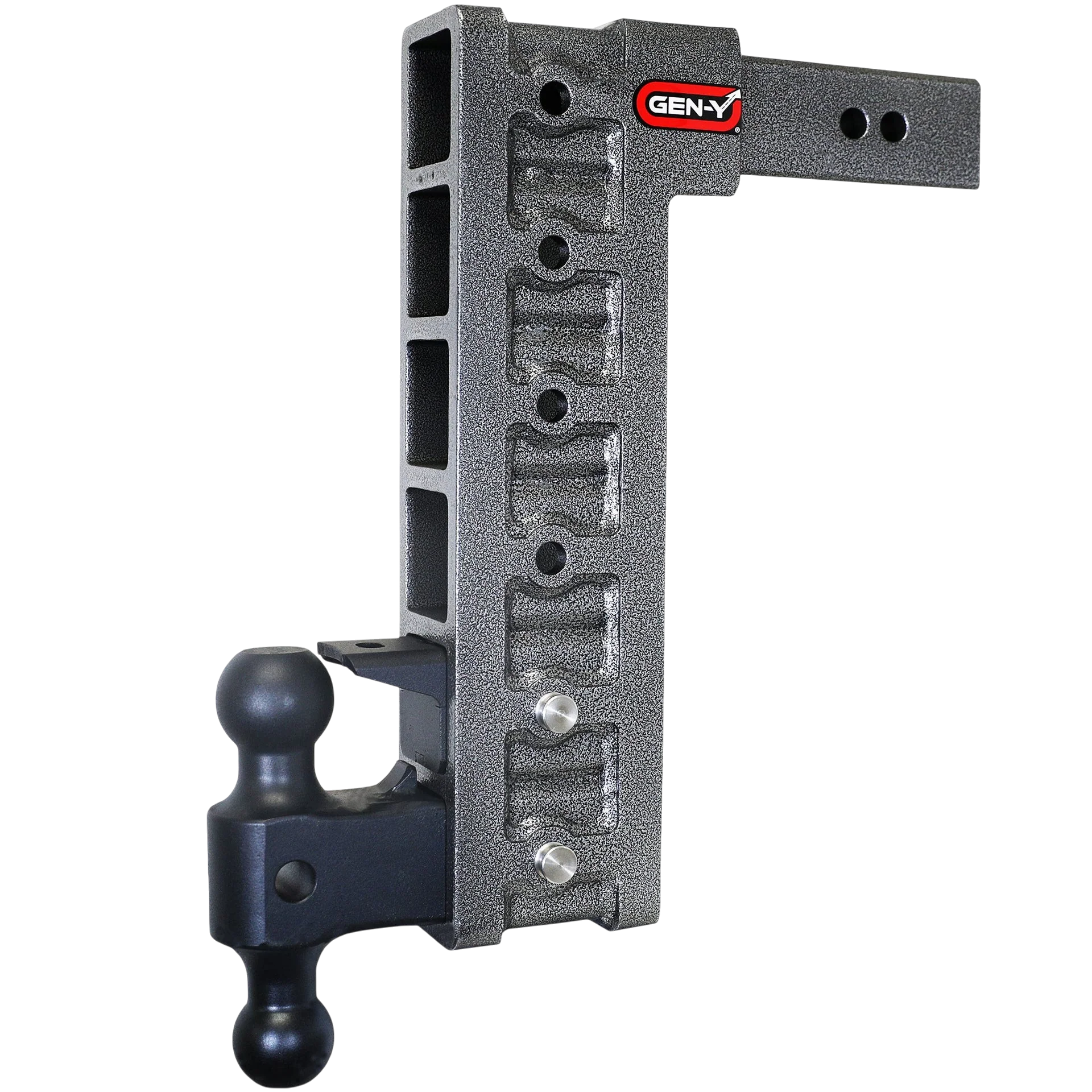

Gen-Y Mega-Duty 21K 15" Drop Hitch 2.5" Shank Dual-Ball Mount & Pintle Lock (GH-626)

Description

Fits Universal 2.5" Shank

Towing Capacity: Up to 21,000 lbs.

Tongue Weight: 3,000 lbs.

Drop/Raise: 15"

Dual-Ball Mount: 2″ and 2 5/16"

What Size Drop Hitch Do I Need? | Drop Hitch Stabilizer Bars

The Gen-Y MEGA-DUTY 21K 15" Drop Hitch is the ultimate heavy-duty solution for extreme-lift diesel trucks that require maximum reach and total towing flexibility. This 2.5" receiver hitch features six adjustable positions and an integrated dual-ball mount with a pintle lock, allowing you to seamlessly transition between standard ball-hitch trailers and heavy-duty ring couplings. Rated for a massive 21,000 lb towing capacity, this rugged setup corrects extreme trailer angles to ensure a level, stable, and professional-grade ride on every haul.

Part Number:  GH-626

Features

• Dual-Ball mount and Pintle Lock
• 6 adjustable positions
• 2 1⁄2” Shank
• Strongest adjustable drop hitch
• Most versatile hitch

• 2.5″ Slot Openings on Hitch
• Fabricated with Heavy-Duty Steel

• Designed for 1.5″ or smaller lunette rings
• Sand Blasted and Coated with a Durable Silver-Vein Powder Coat

Notes

• If you are towing with a pintle ring trailer, use a 2 5/16″ ball, NOT a 2″ ball when towing.
• Got a lift, no problem! Even if you have a lift kit, this hitch can still be of use! However, there are a few things to think about when towing with a lifted vehicle.
• Long drop hitches (12″ or more) will put additional leverage on the vehicle receiver. Therefore, in some cases, receiver hitch manufacturers will reduce ratings by as much as 50%.
• A long drop hitch will also typically create a lot more movement due to the added length and drop of the ball mount. Using the Stabilizer Kit (GH-0100) will tie the bottom of the GEN-Y adjustable drop hitch into the frame of the truck which will take the stress off of the receiver as well as keeping the bottom of the ball mount from moving, ensuring a safe towing experience.

Warranty

Parts Only

• Limited Lifetime Warranty

How It Works

The original quick-adjust GEN-Y pintle hitch system uses the standard GH-061 2.5″ Versa-Ball in addition to the GH-062 pintle lock to quickly and safely connect to any size or height pintle coupling. By simply pulling the pin in the pintle lock and sliding it back into the adjustable GEN-Y hitch system, the lunette eye (pintle ring) of the pintle trailer can then be lowered down over the 2 5/16″ side of the Versa-Ball. The last step is to slide the pintle lock back out across the lunette eye and pin it in place securely.
