2010-2020 Cummins ISX/QSX 64mm Replacement Turbocharger (FPE-HE4-64)

Description

Fits

Year	Model	Engine
2010-2020	ISX CM2250 and CM2350	Cummins

 The HE400VG / HE451VE replacement turbocharger from Fleece gives you a quick, new & reliable replacement turbo for the ISX CM2250 and CM2350 models.

Part Number: FPE-HE4-64

Features

• No core charge

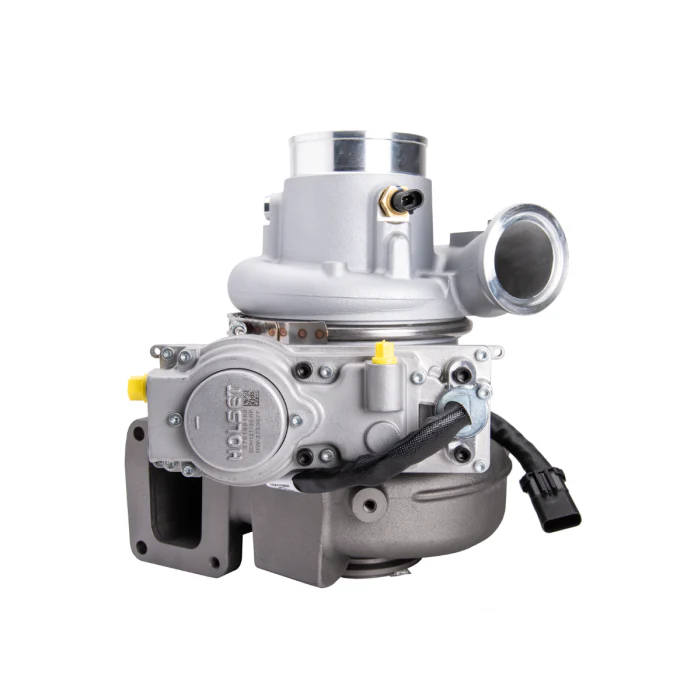

• New Holset actuator
• New air intake temperature sensor
• New turbine speed sensor
• New turbine flange gasket
• New mounting studs and nuts

Additional Info

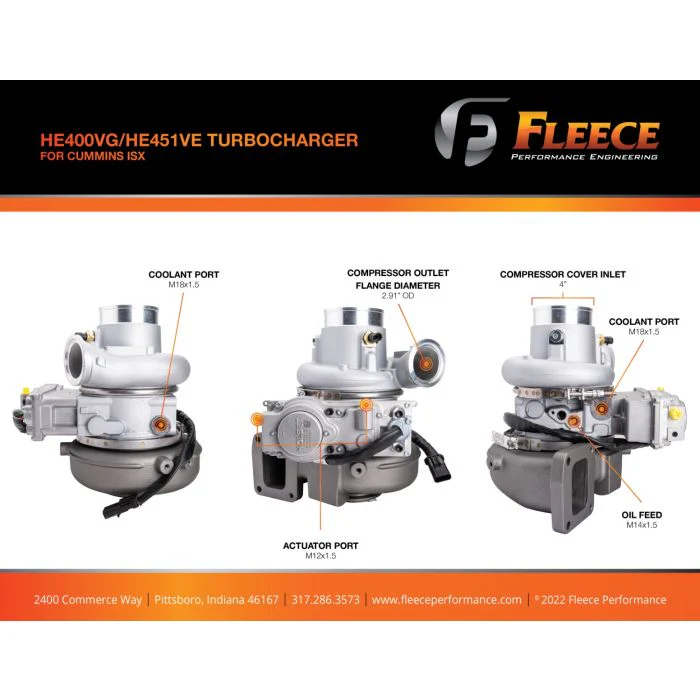

• Coolant ports: M18x1.5
• Oil feed port: M14x1.5
• Compressor intake OD: 4.0”
• Compressor outlet OD: 2.9”

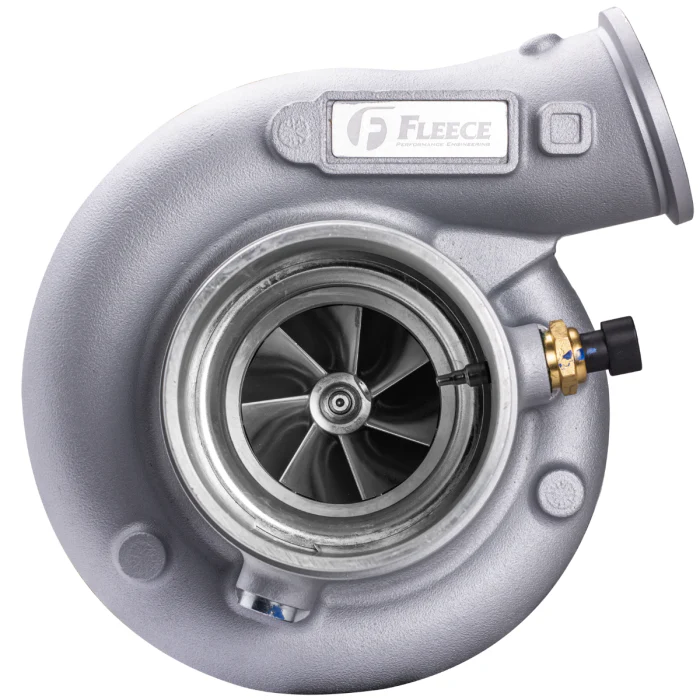

Compressor Wheel:

• Blade count: 7x7
• Inducer: 64mm
• Exducer: 92mm

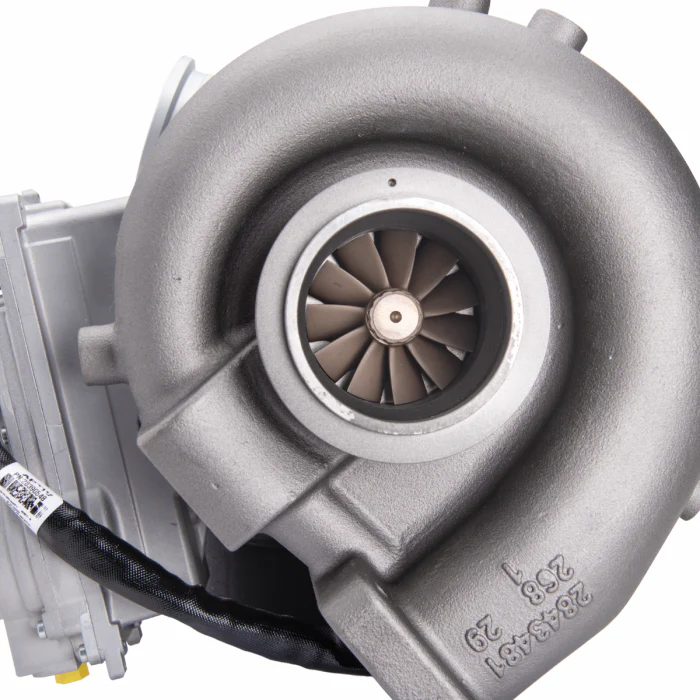

Turbine Wheel:

• Blade count: 11
• Inducer: 72mm
• Exducer: 67mm

Notes

• Fits Cummins ISX15 CM2250 and CM2350

• Replaces Holset part number: 2882111
