2010-2020 Cummins ISX/QSX 67mm Replacement Turbocharger (FPE-HE4-67)

Description

Fits

Year	Model	Engine
2010-2020	ISX15 CM2250 and CM2350	Cummins

 The HE400VG / HE451VE replacement turbocharger from Fleece gives you a quick, new & reliable replacement turbo for the ISX CM2250 and CM2350 models.

Part Number: FPE-HE4-67

Features

• No core charge

• New Holset actuator

• New air intake temperature sensor

• New turbine speed sensor

• New turbine flange gasket

• New mounting studs and nuts

Additional Info

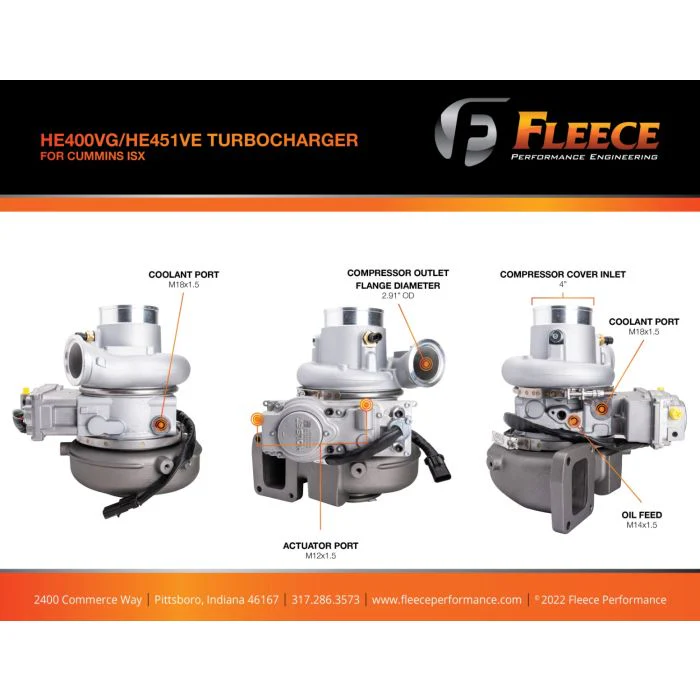

• Coolant ports: M18x1.5
• Oil feed port: M14x1.5
• Compressor intake OD: 4.0”
• Compressor outlet OD: 2.9”

Compressor Wheel

• Blade count: 7x7
• Inducer: 67mm
• Exducer: 92mm

Turbine Wheel

• Blade count: 11
• Inducer: 72mm
• Exducer: 67mm

Notes

• Replaces Holset part number: 2882112

Prior Part Numbers and Cross-reference

2843821, 2882015, 2882112, 3769054, 3769055, 3769056, 3769058, 3769059, 3769061, 3773488, 3773489, 3773491, 3773492, 3773493, 3773495, 3792571, 3792576, 3792577, 3792583, 3795122, 3795143, 3795159, 3796351, 5350404, 5350411, 5350501, 5350501, 5359595, 5359609, 5456845, 5458503, 5458260, 288211200, 379257600, 2882015NX, 2882015RX, 288211200HX, 288211200NX, 288211200RX, 2882112H, 2882112NX, 2882112RX, 379257600H, 3792576H, 379258300H, 3792583H 3798515RX, 5350411RX, 5350501H, 5359609NX, 5359609RX, 5458503NX, 5458503RX, 3796391

Warranty

1 Year Limited Parts Warranty
