1994-1998 Powerstroke KC Stage 3 TP38R Tiger Turbocharger (300277)

Description

Fits

Year	Make	Model	Engine
1994-1998	Ford	F-Series	7.3L Powerstroke

Supports: Up to 238cc/80% injectors

Due to the popularity of the TP38R turbo for the OBS-style trucks, KC Turbos has made a smaller version of the turbo for those running average-size injectors. Also known as the OBS Tiger turbo, this KC Turbos TP38r Turbocharger has a drastically different Compressor Wheel. Modeled after the 366sxe compressor wheel, it utilizes a larger 7x7 wheel that maintains the same profile, shape, and blade style; however, it now has thicker blades, a thicker hub, and thicker rear webbing, and it is in reverse rotation. The turbine shaft thickness has also been increased from 6.4mm to 7.5mm for enhanced durability and longevity.

KC Part Number: 300277

Features

• 3.5" ported housing with drilled hole anti-surge for high flow
• 66mm 7x7 SXE style compressor wheel with extended tip technology
• 73mm SXE style turbine wheel
• High Flow deleted EBPV outlet flange
• Dual Ball Bearing Turbo
• 100% drop-in
• Comes with all gaskets and o-rings to install
• Comes with new intake boot

Notes

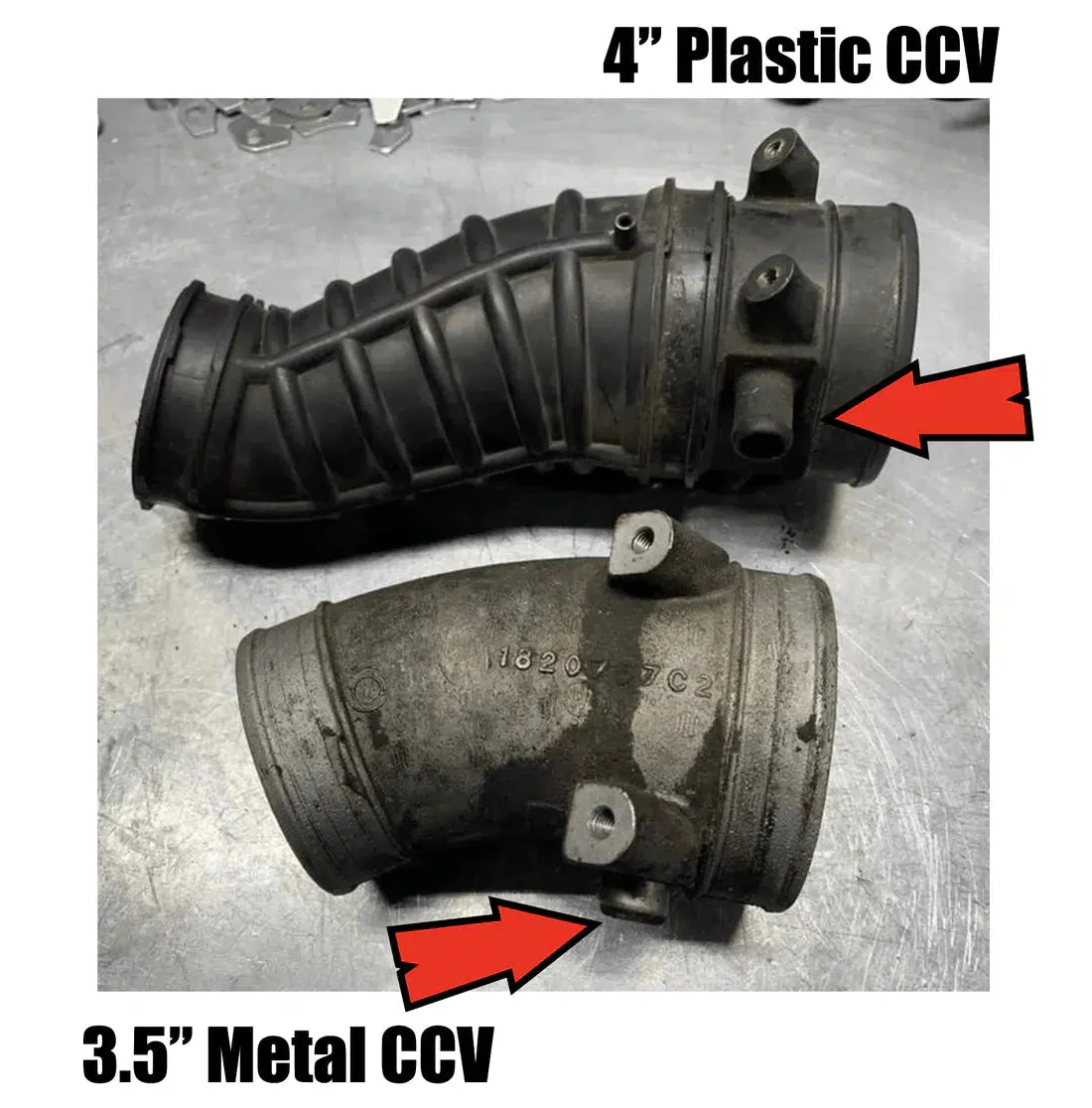

• Please select your truck CCV when ordering

• KC Turbos highly recommends adding these products for best results
• Upgrading your Up-Pipes
• Upgrading EBPV Pedestal
• Running custom tuning
